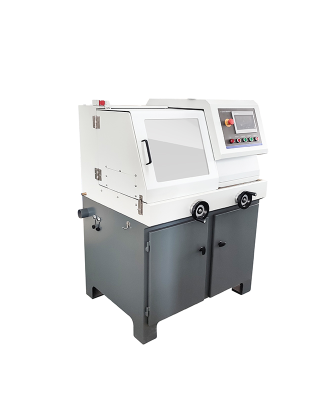

LABTT LC-350XP ເຄື່ອງຕັດໂລຫະອັດຕະໂນມັດ

Cutting disc: 350 * 2.5 * 32mm

Spindle speed: 500-3000r/min

Feed speed: 0.01- 3 mm/s

Cutting stroke (Y axis): 200mm

Cutting stroke (X axis): 45mm

Cutting way: Manual/Automatic

Maximum cutting capacity: Φ100mm round bar or with special fixture can be cut: long 200x wide 240x high 80mm cuboid

Maximum length of clamping table: 120mm

Table size: 282mm*240mm

Cutting clamp: Fast push-pull type, the height of the clamp mouth is 60mm

The key control: LCD touch screen, button

lighting: Dual LED lighting

Cooling device: Two lines of cooling water and a cooling water gun

Magnetic filter circulating water tank: 80L

Servo motor: Power: 4 kw

Emergency brake: The abrupt stop switch

Power supply:: AC380V 50HZ

Overall dimensions: 1050*800*1471mm

weight: 300KG

Standard Accessory:

Metallographic sample cutting machine LC-350XP: 1

Cooling water tank + magnetic separator: 1

Wrench 36: 1

Wrench 22-24: 1

Wrench 14-17: 1

Hexagon socket 4mm (with handle): 1

Hexagon socket 6mm (with handle): 1

Hose hoops 14-27: 2

Inlet pipe Φ 19: 1

Steel pipe 64 mm: 60cm

Cutting wheel (350*2.5*32): 2 picec

Cutting lubricant: 1 bot(4L)

Hose hoops 52-76: 1

Technical documents: 1 copy of product manual, 1 copy of product certificate:
