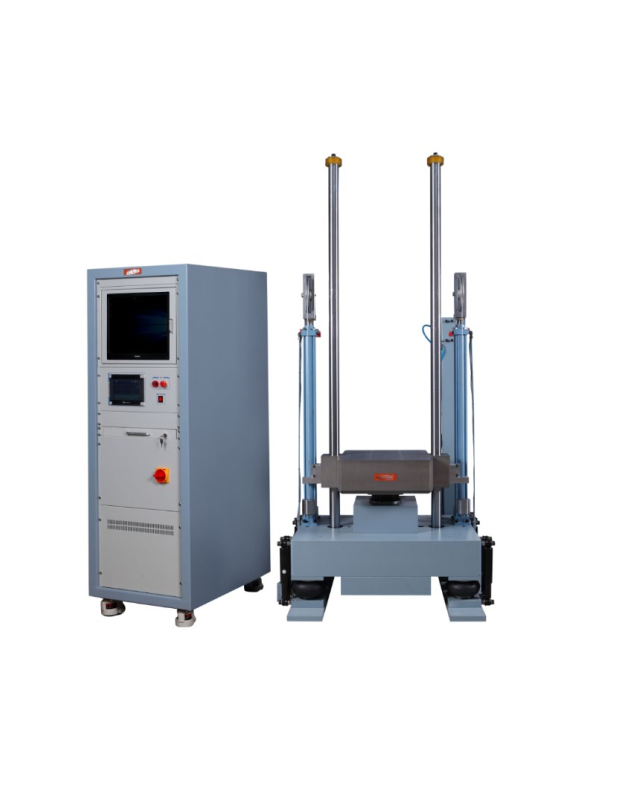

LABTONE SKT30 ລະບົບທົດສອບການຊ໊ອກກົນຈັກ (30kg, 400*400mm, 10-1000G)
Main parameters of the shock tester
Operating platform: 400 × 400 mm
Max. load: 30 KG
Acceleration: Half sine wave: 10-1000G
Pulse duration: Half sine wave: 1 to 30 ms
Acceleration allowance: ≤ 10%
Rate of speed change: ≤ 10%
Transverse ratio of table: ≤ 10%
Equipment dimensions: 1230*1120*2330 mm
Equipment weight: 1750 kg
Measuring system
Input channels: 2 channels
Sampling frequency: 192KHz
Pulse duration: 0.5 to 100ms
Max. acceleration: 5000G
Communication interface: USB2.0
Supportive standard: ISO, UN38.3, MIL-STD-810, others
Operating system: Microsoft Windows10
System acceleration sensor
Brand: LAB
Model: 23108
Output mode: Charge type
Sensitivity: 10 pC/g
Frequency range: 0.5 to 12KHz
Acceleration range: ±2000G
Operating environment: -40 to +160℃
Other information
Power supply: AC, three phase, 400V±10%,50Hz
Compressed air: 0.5 to 0.8Mpa
Temperature: RT~40℃
Humidity: 25℃, ＜ 85RH%
