LABTONE SKM1500 ເຄື່ອງທົດສອບການກະທົບກະເທືອນມາດຕະຖານ (1000kg; 1500*1500cm)

Table size(mm): 1500*1500

Payload(kg): 1000

Wave form: Half sine pulse

Acceleration range(G): 5-60

Pluse duration(ms): 6-18

Bump repetition frequency: 1-80

Drop height range: 5-180mm

Max velocity variation: 2.8m/s

Machine dimension(mm): 1600*1650*1200

Machine weight(kg): 6500

Power & Air supply: AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder

Standards: GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc

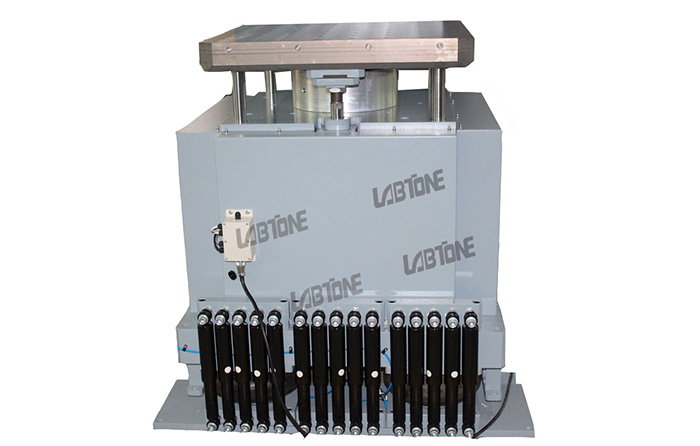

*Product image is for illustrative purposes only

Components and other electronic and electrical products may experience repeating impact during transportation or use. Bump test can be used as a method to ensure the design structure is satisfying or as a quality assurance method. Specimen will experience regular peak acceleration and continuous impact with standard pulse during the bump test.
