LABTONE LAB-CH2000L ຫ້ອງທົດສອບການສັ່ນສະເທືອນສິ່ງແວດລ້ອມ

Temperature Range: -40℃ ~ +150℃

Temperature Constancy: ≤ ±0.5°C

Temperature Uniformity: ≤ 2°C

Temperature Deviation: ≤ ±2°C

Temperature rate of change (Measured at 20±2°C ambient temperature, averaged throughout):

Heating rate: +20℃ → +150℃ ≥ 3℃/min (no load, average throughout)

Cooling rate: +20℃ → -40℃ ≥ 2℃/min (no load, average throughout)

Humidity range: 10% ~ 98% (see temperature and humidity range chart, no heat dissipation load)

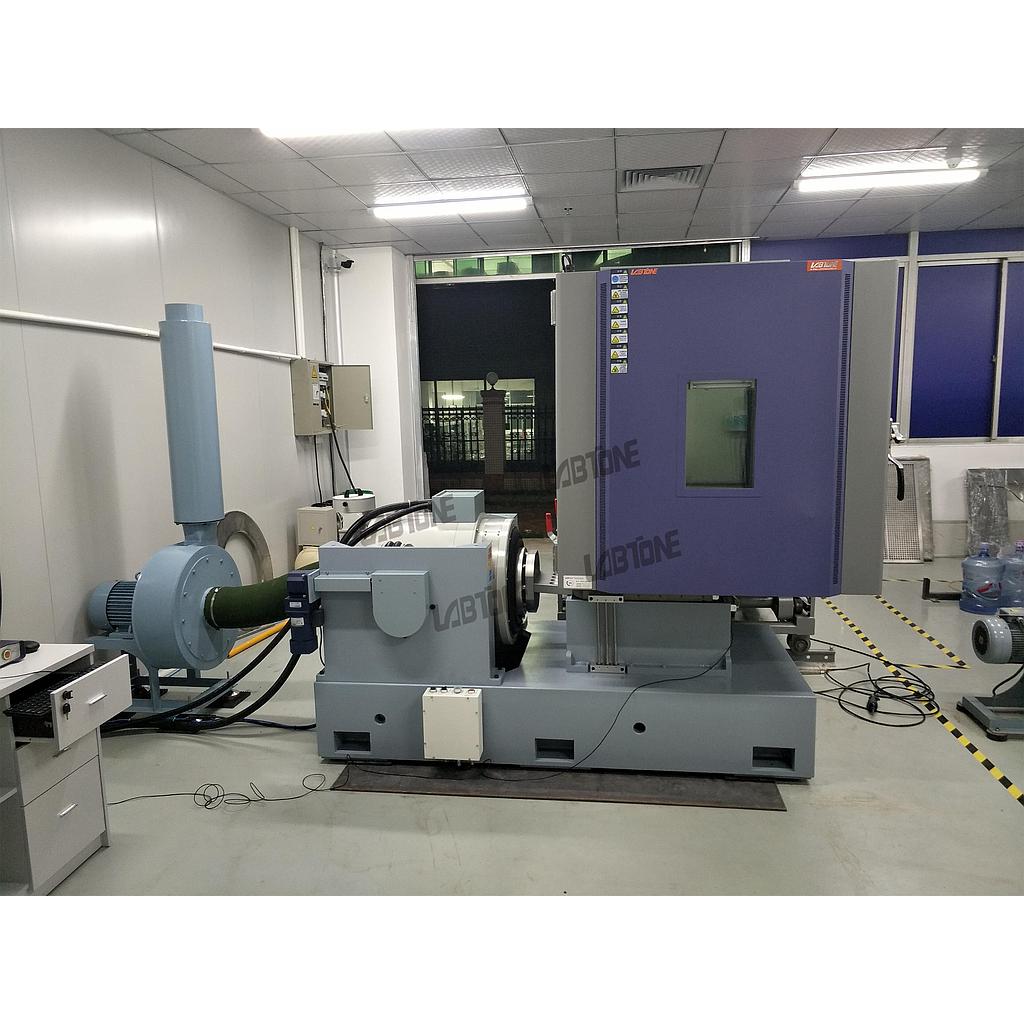

*Product image is for illustrative purposes only

Independent control system: can complete high temperature, low temperature, constant temperature, constant humidity, vibration test and integrated test.

Adopts portable track design to perform integrated or single element test easily.

Our vibration test systems are compatible with international test chambers of different brands. Labtone is in charge of assembly and provide the clients with integrated environment test system of different specifications and performance.
