LABTONE DT030 ອຸປະກອນທົດສອບການຕົກໃນຫ້ອງທົດລອງ payload ສຳລັບການທົດສອບການຕົກຂອງກ່ອງຂະໜາດໃຫຍ່ ແລະ ໜັກ (300kg; 0-1200mm)

Drop height(mm): 0-1200

Specimen weight(KG): 300

Specimen dimension(mm): 1200*1200*1200

Drop type: Free drop

Machine dimension(mm): 2100*1700*2800

Machine Weight(kg): 4500

Power supply: 3 phase AC380V 50HZ

Standards: ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27

*Product image is for illustrative purposes only

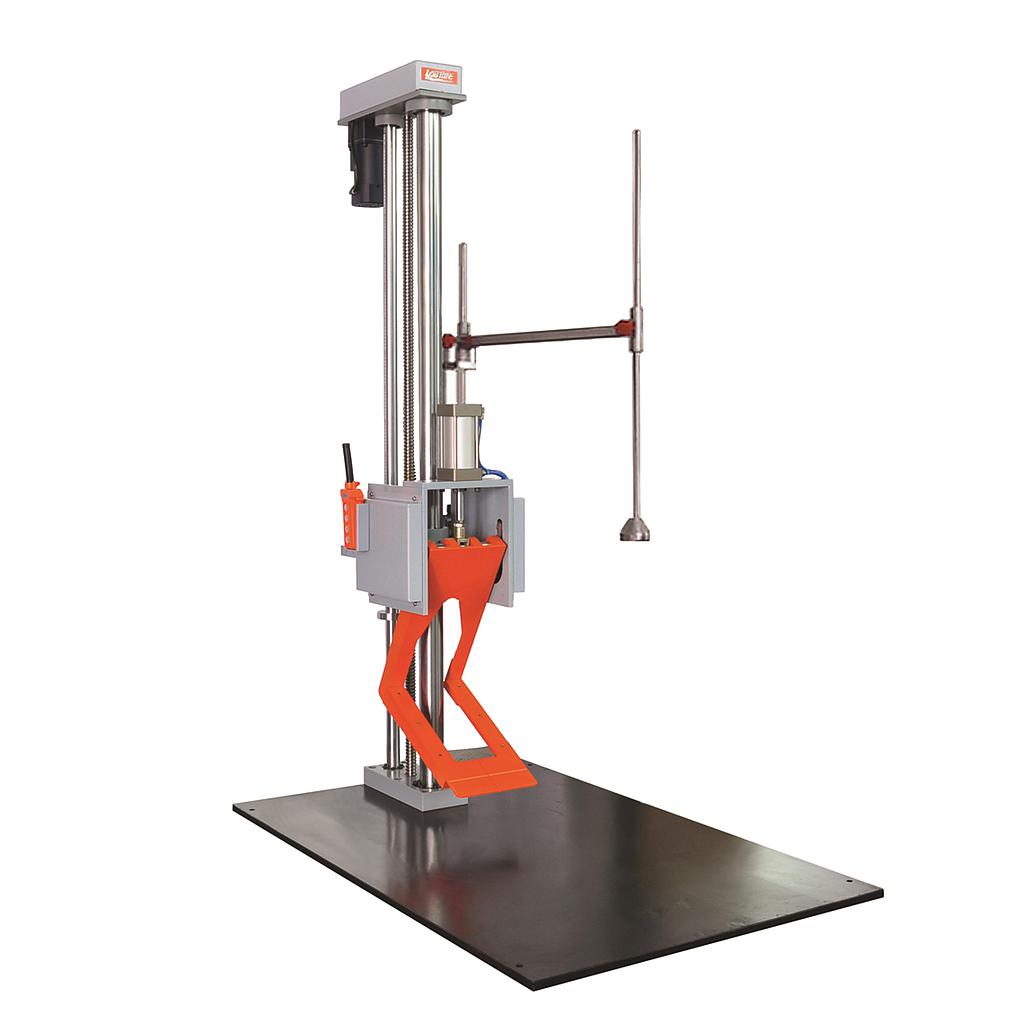

For large packaging with high mass, the vertical drop height during transport will be low and therefore they need drop test with relatively low drop height. Zero Height Drop Tester is mainly used for drop test of big package. It uses an E-shaped fork that can move downward quickly as a bracket and specimen is placed in balance according to test requirement(surface,edge or Corner drop test). During testing, the bracket moves downwards quickly ahead of specimen with acceleration greater than 3G to ensure the separation of bracket and specimen and achieve free fall. The standard fall distance is ranged between 2.54cm-120cm.
