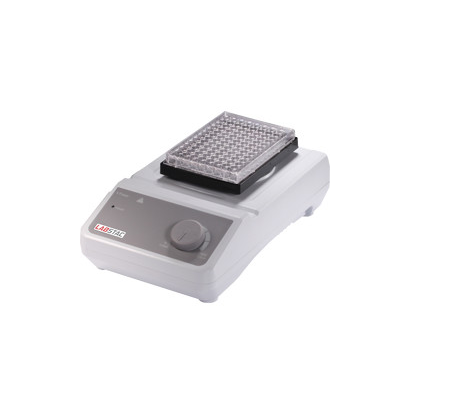

Labstac MV143 Multi-Functional Vortex Mixer

Speed Range: Single microplate: 0-1500rpm, Double microplate: 0-1000rpm

Permissible Ambient Temperature: 5-40°C

Permissible Relative Humidity: 80% RH

Orbital Diameter: 4.5 mm

Motion: Orbital

Motor rating Input [W]: 18

Motor rating output [W]: 10

Maximum Load Capacity: 0.5 kg

Overall Dimension: 260D×150W×80H mm

Speed Display: Scale

Motor Type: DC brushless

Protection Class: IP21

Weight: 3 kg

Power: 20 W

Power Supply: 100-240 V, 50/60 Hz

Optional Accessories:

Accessory Code Name Description

MX1028 Tube adapter For 48 holes test tubes, Ø6mm, used with MX1027/ MX1026/PS1.1

MX1029 Tube adapter For 15 holes test tubes, Ø10mm, used with MX1027/ MX1026/PS1.1

MX1030 Tube adapter For 12 holes test tubes, Ø12mm , used with MX1027/ MX1026/PS1.1

MX1031 Tube adapter For 8 holes test tubes, Ø16mm, used with MX1027/ MX1026/PS1.1

MX1032 Tube adapter For 8 holes test tubes, Ø20mm, used with MX1027/ MX1026/PS1.1

MX1035 Universal top plate(round) Used with MX1028 to MX1032

MX1036 Microplate clamp

MX1037 Double microplate clamps
