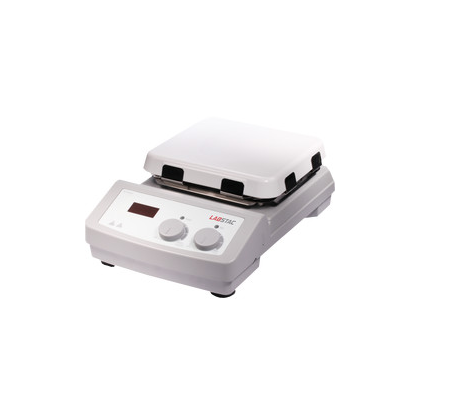

Labstac MH125 Magnetic Hotplate Stirrer (0-1500 rpm; 10 L)

Capacity: 10 L

Stirring Positions: 1

Speed Range: 0-1500 rpm

Temperature Range: RT-550°C

Permissible Ambient Temperature: 5-40°C

Temperature Increment: 5°C

Control Accuracy of Work Plate: ±10°C

Temperature Accuracy: ±1°C

Safety Temperature: 580°C

Control Accuracy with Sensor PT1000: ±0.5°C

Permissible Relative Humidity: 0.8

Heating Warning: 50°C

Motor rating Input [W]: 15

Motor rating output [W]: 1.5

Heating Output: 1000 W

Work Plate Size: 184x184 mm

Stirrer Dimension: 80 mm

Platform Material: Glass ceramic

Speed Display: Scale

Temperature Display: LED

Remote Control (RS232 interface): No

Motor Type: Shaded pole motor

Protection Class: IP21

Overall Dimension: 215Wx360Dx112H mm

Weight: 4.5 kg

Power: 1030 W

Power Supply: 100-120 V/200-240 V, 50/60 Hz

Optional Accessories:

SX1002Stirrer bar 10mm x 6mm

SX1003Stirrer bar 15mm x 8mm

SX1004Stirrer bar 20mm x 8mm

SX1005Stirrer bar 25mm x 8mm

SX1006Stirrer bar 30mm x 6mm

SX1007Stirrer bar 40mm x 8mm

SX1008Stirrer bar 50mm x 8mm

SX1009Stirrer bar remover - Length of 200mm

SX1012Temperature sensor - Length of 230mm

SX1013Temperature sensor with glass coating; Length of 230mm

SX1014Temperature sensor - Length of 100mm

SX1021Red quarter pie; 11 holes, 4 ml reaction vessel, Ø15.2mm, 20mm depth, used with SX1019 and SX1020

SX1022Purple quarter pie; 4 holes, 20 ml reaction vessel, Ø28mm, 24mm depth, used with SX1019 and SX1020

SX1023Blue quarter pie; 4 holes, 30 ml reaction vessel, Ø28mm, 30mm depth, used with SX1019 and SX1020

SX1024Black quarter pie; 4 holes, 40 ml reaction vessel, Ø28mm, 43mm depth, used with SX1019 and SX1020

SX1025Green quarter pie; 6 holes, 8ml reaction vessel, Ø17.8mm, 26mm depth, used with SX1019 and SX1020

SX1026Golden quarter pie; 4 holes, 16ml reaction vessel, Ø21.6mm, 31.7mm depth, used with SX1019 and SX1020

SX1027Stirrer bar; Stirrer bar (65mm x 8mm), 1pc/pk

SX1028Stirrer bar; Stirrer bar (80mm x 13mm), 1pc/pk
