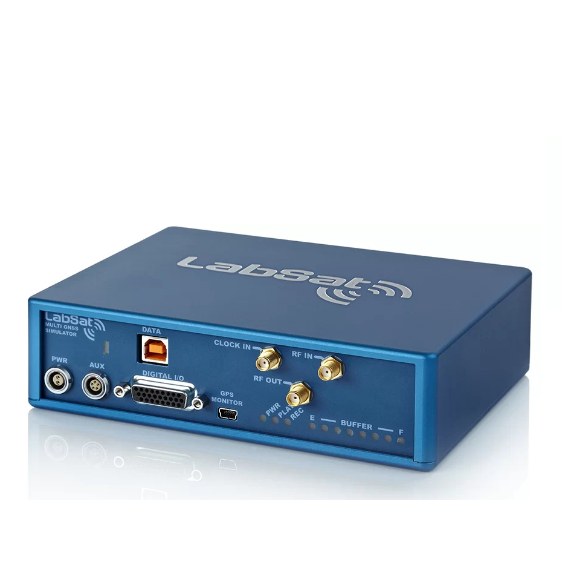

LABSAT Labsat RT GNSS Constellation Simulator
Constellations: GPS L1, GLONASS L1, BeiDou B1, Galileo
Output Signal Level: Fixed -83dBm
Ability to vary the C/No levels for all or individual satellites during simulation
RF Channels: 2
RF Channel Centre Frequencies: Selectable
Number of Satellites Observed: All in view
Sampling Frequency: 16.368 MHz
Bandwidth: 16 MHz
Quantisation: 1 or 2 bit (I & Q)
Data Format: I & Q
Media Storage Included: External hard disk only
Active Antenna Voltage Supply: 3.3 V
Reference Oscillator:
Frequency Stability ±2.5 ppm TCXO / ±0.05 ppm OCXO (optional)
Temperature Stability ±0.05 ppm TCXO / ±0.01 ppm OCXO (optional)
Operating Voltage: 8 V to 30 V DC
