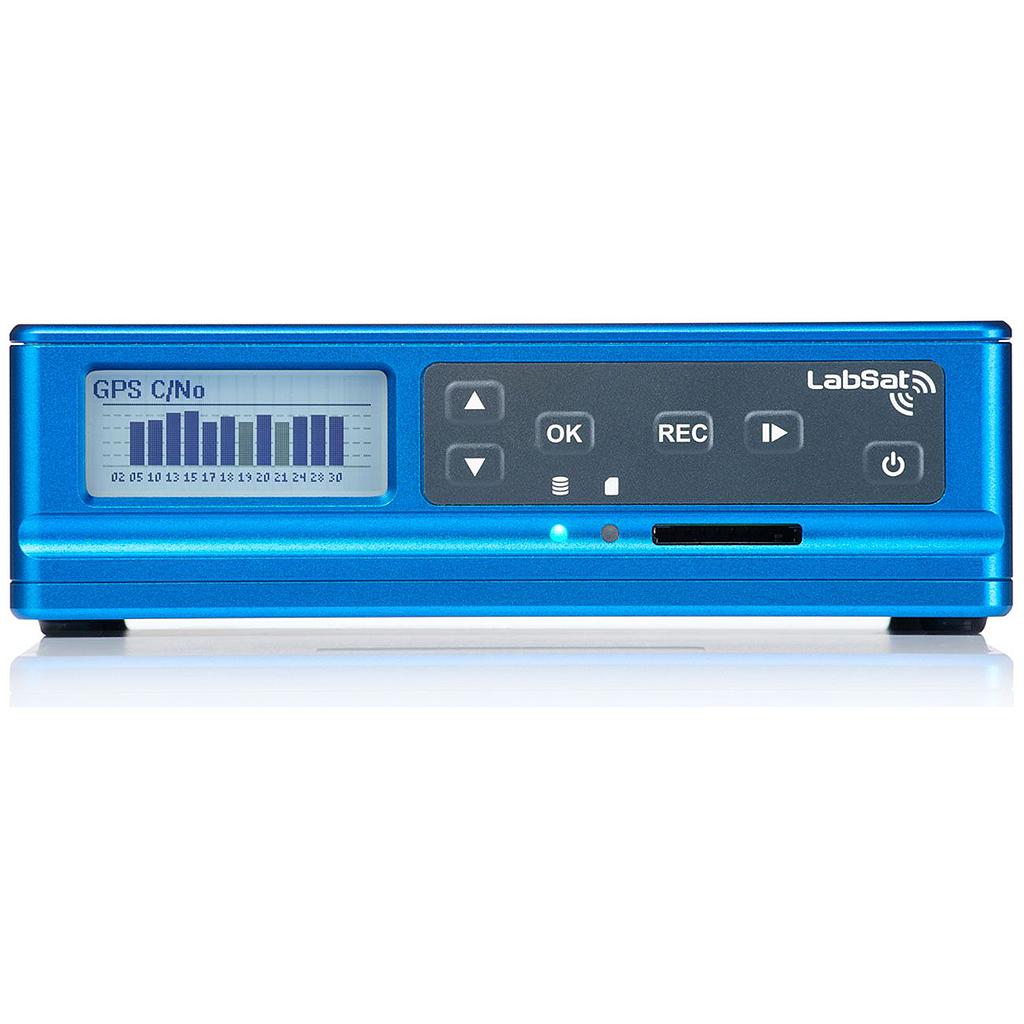

LABSAT LabSat 4 ຕົວຈຳລອງການບັນທຶກ GNSS (No antenna, battery, carry case)
Record Only
Constellations:
GPS L1, L2, L5;
Galileo E1, E5a/b, E6;
GLONASS G1, G2, G3;
BeiDou B1, B2a/b, B3;
QZSS L1, L2, L5
NavIC L1, L5, S-Band;
SBAS L1, L5;
Pulsar X1, X5.
Nominal Output Signal Level: -93 dBm/MHz @ 0 dB
Variable attenuator provides between +20 dB and -69 dB of adjustment during replay
RF Channels: 3
RF Channel Centre Frequencies: Selectable
Number of Satellites Observed: All in view
Bandwidth: Variable 10 - 60 MHz per channel
Sampling Frequency: Automatically adjusted to suit bandwidth 10 - 61 MHz
Quantisation: b1, 2, 4, 8, 12 bits I&Q
Data Format: I & Q
Additional Logging: 2x CAN channels, 4x Digital channels, 1x RS232 channel, 1x CAN-FD
User Defined Simulation Capability: Yes, through optional Simulation Software license
Storage: 7 TB SSD
All versions come with an 8 GB SD Card (for firmware upgrades only) and removable battery pack
Data Transfer: High-speed data transfer to and from SSD via Gigabit Ethernet
Reference Oscillator:
OCXO: Temperature Stability ± 0.05 ppm, Frequency Stability ± 0.3 ppm over first year
TCXO: Temperature Stability ± 0.05 ppm, Frequency Stability ± 1 ppm over first year
Operating Voltage: 8 V to 30 V DC
Operating Temperature: 50°C ambient
Size: 137 mm x 167 mm x 52 mm
Weight: 1.45 kg with battery and SSD
