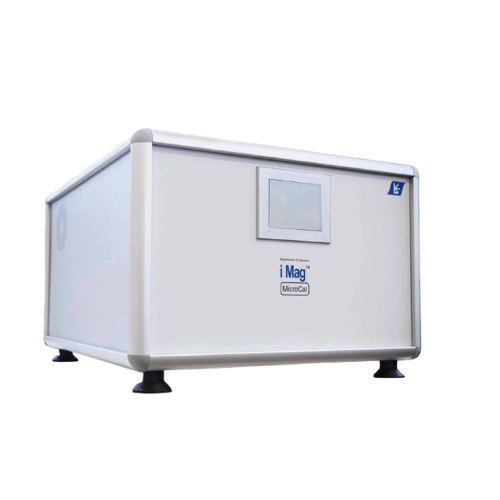

Laboratorio Elettrofisico i Mag™ MicroCal ເຄື່ອງທຳແມ່ເລັກຕຣິກ (Up to 700 V / 3000 V, 150 µF / 2000 µF ~ 600 µF / 8000 µF)

Voltage range: Up to 700 V / Up to 3000 V

Capacitance: 150 µF / 2000 µF, 300 µF / 4000 µF, 450 µF / 6000 µF, 600 µF / 8000 µF

Voltage resolution: 1 V

Voltage accuracy: ±0.5%

Minimum cycle time: 5 sec

Maximum current: 20 kA

Power supply: 230 V - 16 A

Input/Output interface: 24 VDC / RS232 / PROFINET®

Remote service (optional): LAN (Ethernet) or Wi-Fi

Quick connectors: Fast connectors up to three coils

Dimensions: L 655 x W 800 x H 450 mm - L 25.8 x W 31.5 x H 17.7 inches

Weight: 80 kg - 176 lb

Colors: Aluminium frame natural anodized

Current peak detector: Embedded

Touch screen: 5” colors

DATASHEET

APPLICATIONS

PM inductors (BLDC, IPM, Sync. BL, DC, Hybrid, Sync. RM, shaded poles, linear, voice coil, and induction machines)

Sensors: any shape, single or multiple traces, regular or irregular spaced multi-polar patterns

Other magnetic devices: loudspeakers, watches, and single permanent magnets
