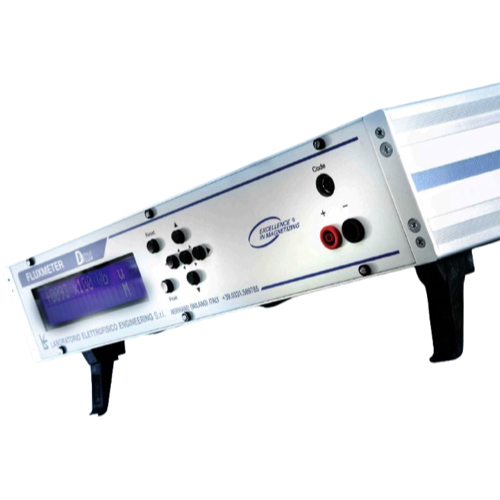

Laboratorio Elettrofisico D-FLUX ເຄື່ອງວັດກະປົກໄຟຟ້າ (2000 x (1, 2, 5, 10, 20, 50, 100) µWb)
General
Input: 2 inputs available, in front and back panels
Input resistance: 10 kΩ x range
Maximum input voltage: 60 Vpp
Keypad: 7 keys
Display: 2 lines x 20 characters LCD LED backlight
Display update rate: Selectable between 1 to 25 updates/second
Display units: volt · second, weber, maxwell
Display parameters: Measurement mode: Normal bipolar, unipolar, peak max-min hold, alarm status
Display color: White characters, blue background
Measurements
Ranges: 2000 x (1, 2, 5, 10, 20, 50, 100) µWb
Measurement resolution: 1, 2, 5, 10, 20, 50, 100 µWb
Display resolution: To 4½ digits
Accuracy: ±0.5 % of reading, ± 1 digit
Drift: Less than 1 digit/minute
Frequency response: DC - 1 kHz
Interfaces
Analog input: BNC, ±2 V full scale, ±1%, ±1 mV accuracy
Interfaces: RS-232 (2400, 4800, 9600 baud), Threshold Limit Relays
Physical
Power requirements: 100 - 240 VAC 50/60 Hz
Max current absorption: 0.3 A
Working temperature: 10 to 40 °C
Warm-up time: 30 minutes
Size: 447 x 273 x 107 mm (with pedestal) - 17.60” x 10.75” x 4.20” (with pedestal)
Weight: 5 kg (11 lb)
