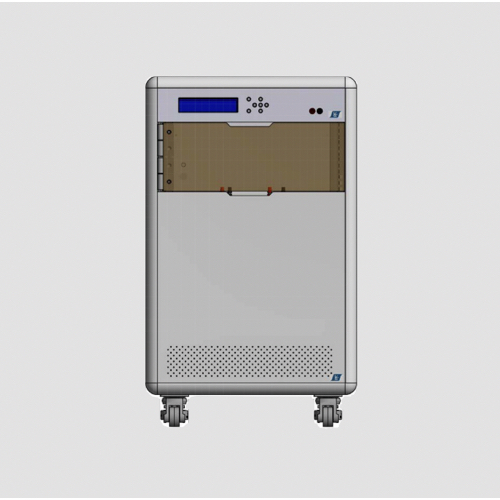

Laboratorio Elettrofisico AMH-50K-S ເຄື່ອງວັດ Permeameter ສໍາລັບວັດຖຸວັງແອ້ນນຸ່ມ (DC ÷ 50 kHz; 6600 VA peak)
General
Frequency Range: DC ÷ 50 kHz
Max Power: 6600 VA peak
Measurable Materials: Soft Magnetic Materials
Measurable Quantities: Bsat, Jsat, Hsat, Br, Hc, cycle area, µrel, specific losses (P), losses separation
Measurable Shapes: Ring, strip (with optional Epstein frame)
Sample Size
Ring: No physical limitation (size affects the max H field)
Strip (Epstein): 30 mm × 300 mm (multiple of 4)
Typical Accuracy
Ring: Bsat, Br: ±1%; Hsat, Hc: ±1%, µr: ±2%; Losses: ±3%
Strip: Bsat, Br: ±1%; Hsat, Hc: ±1%, µr: ±2%; Losses: ±3%
Test Time: 60-180 seconds (typical)
Operating Temperature Range: 15°C ÷ 40°C
Acquisition
Unit: 16 bits
ADC Resolution: 10 up to 16 bit
Sampling Rate: 2.5 MS/s
Max Voltage Range: ±20 V
Size & Weight
Dimensions: L 543 x W 830 x H 889 mm - L 21” x W 32.6” x H 35”
Weight: 160 kg (352 lb)
