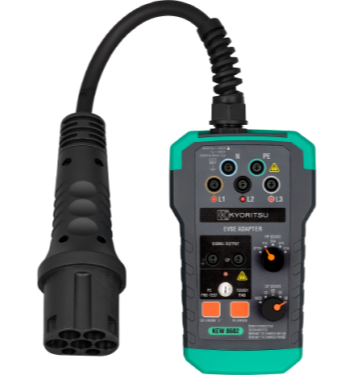

KYORITSU KEW 8602 ອະແດັບເຕີສະເພາະສຳລັບ EVSE (50/60Hz)
Plug: IEC 62196-2 Type 2
Rated voltage : AC 250V Max.(Single-phase); AC 430V Max.(Three-phase)
Rated Frequency: 50/60Hz
Rated voltage/ current of mains socket: AC 10A/250V
※8602(EU):Type E socket
8602(UK):Type BF socket
8602(AU):Type O socket
Fuse rating: AC 10A/250V, Ø5×20mm
Operating temperature and humidity range: 0 - 40ºC, relative humidity 80 % or less (no condensation)
Storage temperature and humidity range: -10 - 50ºC, relative humidity 80 % or less (no condensation)
Applicable standards : IEC 61010-1 CAT Ⅱ 300V, IEC 61010-2-030, IEC 61851-1, IEC 60529 (IP40)
Altitude : 2000m or less
Cable length: Approx. 250mm
Dimension: Unit: 172(L) x 105(W) x 57(D) mm; Plug part: 175(L) x 60(W) x 53(D) mm
Weight: Approx. 840g
Accessories: 8930(Fuse[10A/250V]); 9202 (Carrying case); Instruction manual
Optional Accessories: 8603 (TYPE1 to TYPE2 conversion adapter)
