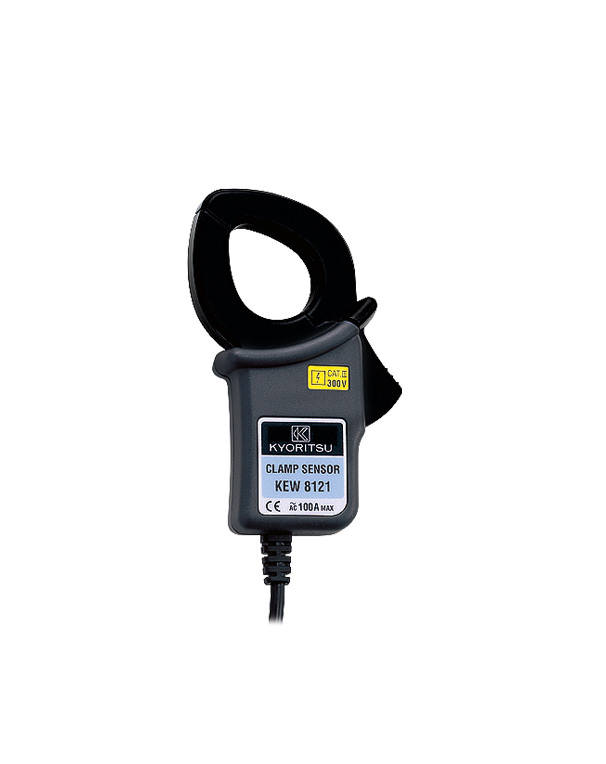

KYORITSU KEW 8121 ໂຫຼດເຊັນເຊີ Clamp ປັດຈຸບັນ (AC 500mV/100A)

Conductor size: Ø24mm

Rated current: AC 100A

Output voltage: AC 500mV/100A (AC 5mV/A)

Accuracy:

±2.0%rdg±0.3mV (50/60Hz)

±3.0%rdg±0.5mV (40Hz - 1kHz)

Cable length: Approx. 2m

Output connector: MINI DIN 6PIN

Output impedance: Approx. 9.5Ω

Applicable standards: IEC 61010-1 , IEC 61010-2-032 CAT III 300V pollution degree 2 , IEC 61326

Operating temperature and humidity range: 0 - 40°C , relative humidity 85% or less (no condensation)

Dimension: 97(L) x 59(W) x 26(D) mm

Weight: Approx.150g

Accessories: 9095 (Carrying case), Instruction manual , Cable marker

Optional Accessories: 7146 (Banana Ø4 adjuster plug), 7185 (Extension Cable)
