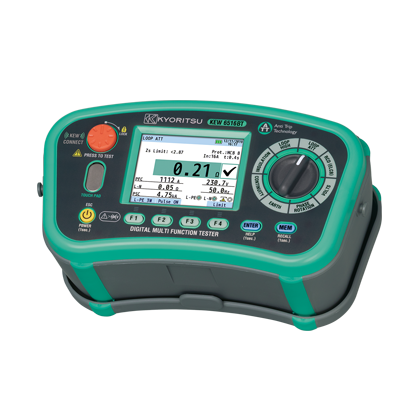

KYORITSU 6516BT ຜູ້ທົດສອບຫຼາຍຟັງຊັນ
Display: Color LCD 3.5 inches dot matrix.
ATT:
Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
With 2 wire only, very useful in case of no Neutral (i.e. 3-phase motor lines)
LOOP:
High test current range of 2Ω with 0.001Ω resolution.
Zs Limit compares the values required by Electrical Installations Standard with measured results.
RCD:
Type AC, A, F, B(General & Selective), EV and Variable RCDs
Single and Auto test, Ramp test and Contact voltage.
Earth: Earth resistance test 2 and 3 wires with all accessories included.
Insulation: Resistance test 100, 250, 500 & 1000V with auto discharge voltage.
Continuity: Continuity test at 200mA or 15mA with selectable buzzer for fast judgment.
Phase rotation: On 3-phase lines with clear indication of the sequence on the display.
Volts: TRMS Voltage measurements 2-600V, Mains Frequency.
Help: Display shows how to connect the instrument according to the function selected.
SPD: Surge Protection Device test, for SPD that uses varistor.
PAT: Portable Appliance Tester function, for Insulation and Protective conductor resistance test
Bluetooth: Communication by "KEW CONNECT"
Safety: IEC 61010-1 CAT IV 300 V, CAT III 600 V. IEC 61557-1,2,3,4,5,6,7,10.
