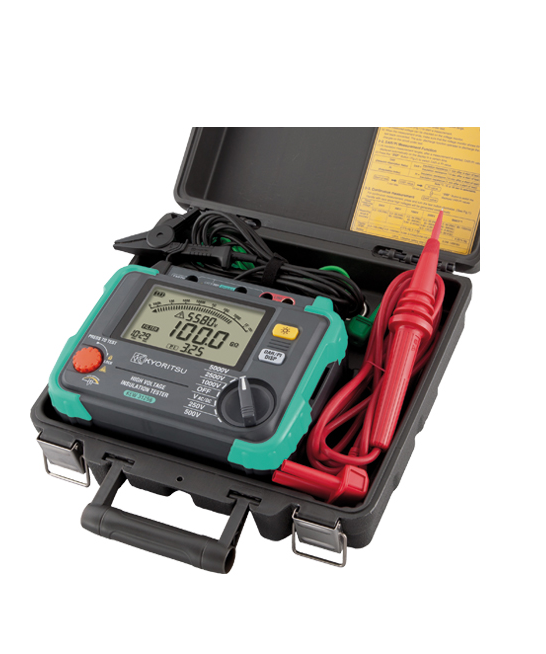

KYORITSU 3125B ເຄື່ອງທົດສອບແຮງດັນແຮງດັນສູງ (250V~5000V, 100.0MΩ~1000GΩ)
Insulation resistance
Test voltage: 250V/ 500V/ 1000V/ 2500V/ 5000V
Measuring range: 100.0MΩ/1000MΩ/2.00GΩ/100.0GΩ/1000GΩ
Accuracy: ±5%rdg |±3dgt, ±20%rdg (100GΩ or more)
Short circuit current: 1.5mA
Voltage measurement
Measuring range
AC: 30 - 600V (50/60Hz)
DC: ±30 - ±600V
Accuracy: ±2%rdg±3dgt
General
Applicable standards: IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-031, IEC 61326-1, 2-2
Power source: DC12V : LR14/R14 × 8pcs
Dimension:
177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Carring case [Hard])
Weight:
1.9kg approx. (including batteries)
4kg approx. (including accessories)
Accessories
7165A (Line probe)
7264 (Earth cord)
7265 (Guard cord)
8019 (Hook type prod)
9204 (Carring case [Hard])
LR14 (Alkaline battery size C) × 8
Instruction manual
Optional accessories
7168A (Line probe with alligator clip)
7253 (Longer line probe with alligator clip)
8302 (Adaptor for recorder)
