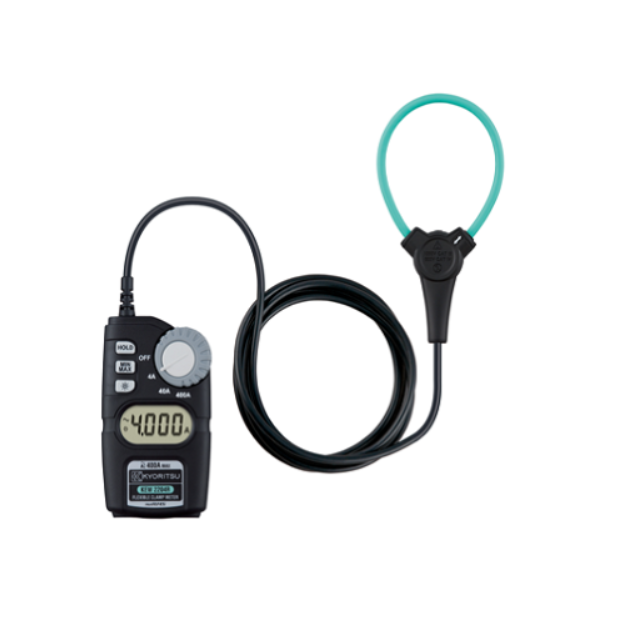

KYORITSU 2204R AC Digital Clamp Meter (AC 400A)
AC A (RMS)
Range: 4.000/40.00/400.0A
Accuracy: ±3%rdg±5dgt[45-500Hz]
(At the center of the circle formed by the flexible sensor)
Crest factor (CF): Full scale CF<1.6, half scale<3.2
Effective input crest values are √2 times of the max values of each range.
Conductor size: Ø70mm max.
Conductor position: Additional ±2% (max.) depending on the distance from the center position
Overload protection: 500A AC for 10 seconds
Applicable standards:
IEC 61010-1, IEC 61010-2-032
CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2
IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS)
Operating temperature & humidity: 0 - +50℃,less than 80% RH (without condensation)
Storage temperature & humidity: -10 - +60℃,less than 70% RH (without condensation)
Power source: R03 / LR03(AAA)(1.5V)×2
※Continuous measuring time：approx.120hours
(Auto power off：approx.15 minutes)
Dimensions: 120(L)×70(W)×26(D)：Display unit
φ5.5mm approx.：Cable diameter
1.8m approx.：Cable length
Weight: 200g approx. (including batteries)
Included Accessories: 9174 (Carrying case), LR03(AAA)×2, Insruction manual
