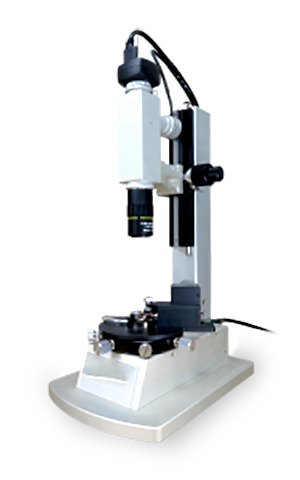

Model: Reflection decentering measurement, transmission decentering measurement, centering
Measurement method Reflective/transmissive
Measurement range
Reflection:
R=+25mm to -145mm (using 10X objective lens)
R=+80mm (using adapter) to -135mm (using f=100mm objective lens)
Transmission:
f=-25mm to f=+145mm (using 10X objective lens)
f=-80mm (using adapter) to f=+135mm (using f=100mm objective lens)
Lens diameter:
Reflection: φ0.5 mm to
Transmission: φ1.0 mm to
Lens rotation: φ0.5mm～φ10mm RS-13(recommended)
φ10mm～φ70mm RS-12(recommended)
Objective lens: 10X ultra long working lens, f=100mm objective lens
Minimum Reading Reflection measurement: Every 1μ and every 1 second
Transmission measurement: Every 1 second
power supply: AC adapter, input ACV100 to AC240V, output DC12V
size: Width 180mm Depth 280mm Height 400mm
weight: 6.0Kg
