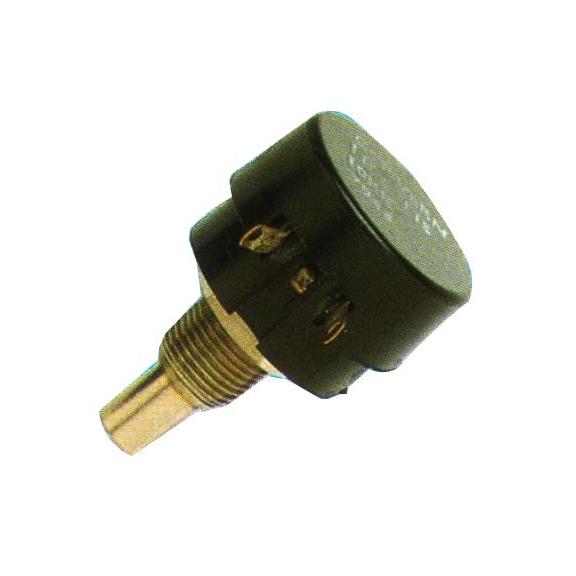

KYOCERA AVX 3101106140 Rotary 1W 1KV 1kOhms +/-10%

Life: 20000 Cycle

Taper: Linear

Length: 17.5 mm

Diameter: 23.11 mm

Features: Smaller Design, Robust Construction

Tolerance: 10 %

Resistance: 1 kOhms

Switch Type: No Switch

Bushing Size: 9.5 mm (3/8 in)

Element Type: Wirewound

Power Rating: 1 W

Bushing Thread: 3/8 in x 32 TPI

Mounting Style: Panel Mount

Shaft Diameter: 6 mm

Voltage Rating: 500 V

Number of Gangs: 1 Gang

Number of Turns: 1 Turn

Number of Detents: Without Detent

Termination Style: Solder Lug

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C
