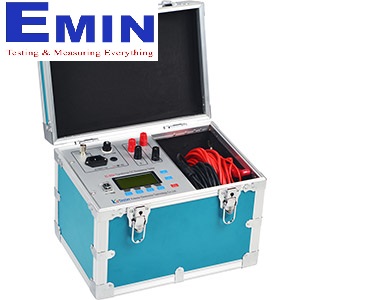

Transformer DC resistance tester KVTESTER ZC-205A

Product Parameters

Output current

Automatic,10A,5A,1A,200mA,40mA,<5mA

Resolving power

0.1uΩ

Accuracy

0.2%

Working temperature

0~40℃

Working humidity

<90% RH, no dewing

Outline dimension

390*205*290mm

Range

100Ω~200kΩ (<5mA )

1Ω~500Ω (40mA )

100mΩ~100Ω (200mA )

5mΩ~20Ω (1A )

1mΩ~4Ω (5A )

0.5mΩ~2Ω (10A )
