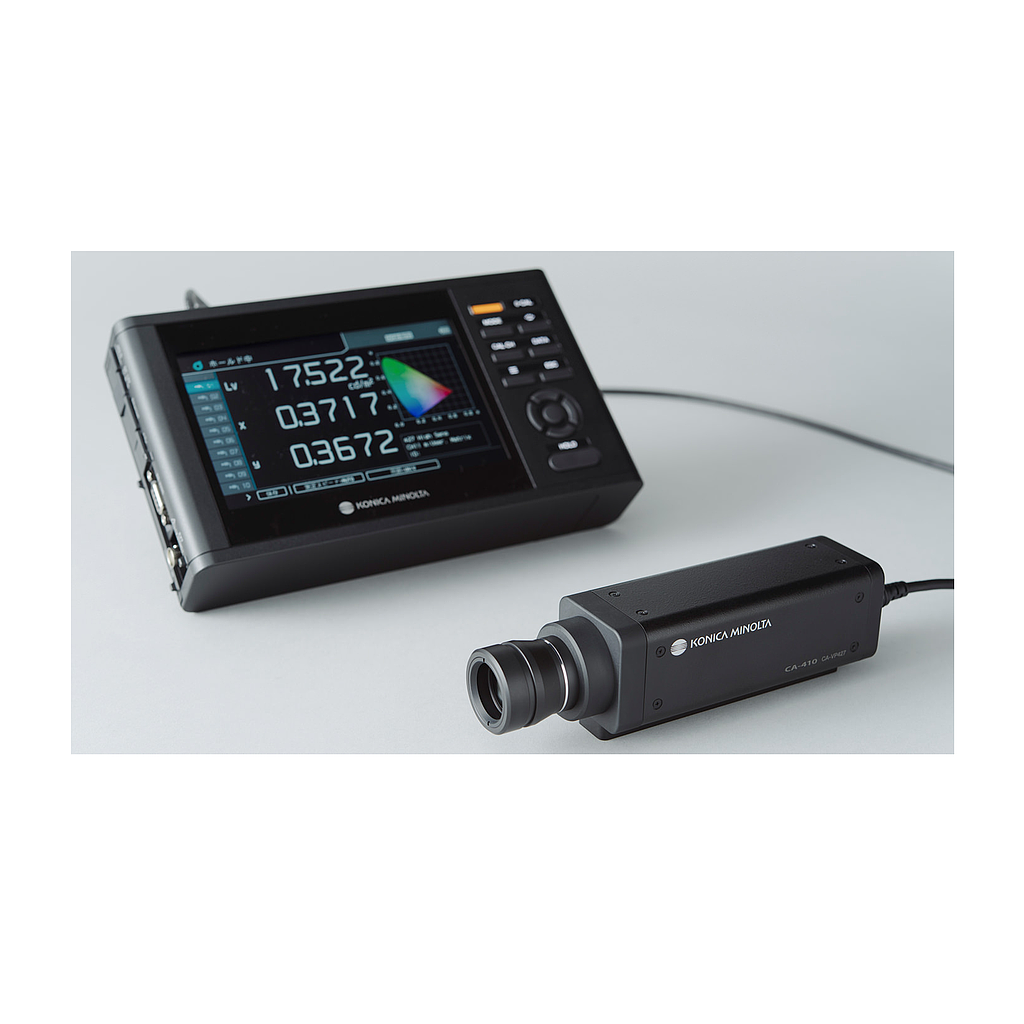

KONICA MINOLTA CA-410 ເຄື່ອງວິເຄາະສີຈໍສະແດງຜົນ
Display Range
Luminance: 0.0001 to 30,000 cd/m²
Chromaticity: 4-digit display
Distortion
(Contrast): 0.0 to 999.99%
(JEITA): Up to 2 decimal places
Display: 7-inch WVGA color LCD
Displayed Parameters
Lvxy (∆Lv ∆x ∆y)
Lvu’v’ (∆Lv ∆u’ ∆v’)
Lv TCP duv (∆Lv ∆TCP duv)
X Y Z (∆X ∆Y ∆Z)
Lv λd Pe (∆Lv ∆λd ∆Pe)
Distortion (Contrast)
Distortion (JEITA)
Data Storage
Measurement data memory: 100 channels
Data logging function: Yes
Display Languages: English, Simplified Chinese, Traditional Chinese, Korean, Japanese
Interfaces
For PC, etc.: USB 2.0, RS-232C, Ethernet, optional Bluetooth (module required)
For probes: Mini-DIN 8-pin cable (for RS connection), USB (for USB connection)
Sync signal input: BNC connector (with trigger input)
Multiple probe connection: Up to 10 probes
Operating / Storage Environment
Operating temperature / humidity: 10 to 35 °C, 85% RH or less (non-condensing)
Storage temperature / humidity: 0 to 45 °C, 85% RH or less (at 35 °C, non-condensing)
Power Supply: AC adapter, optional removable Lithium-ion battery
Battery Life: Approx. 3 hours (with one probe connected)
Dimensions: 253 (W) × 58 (H) × 143 (D) mm
Weight: 1.6 kg
