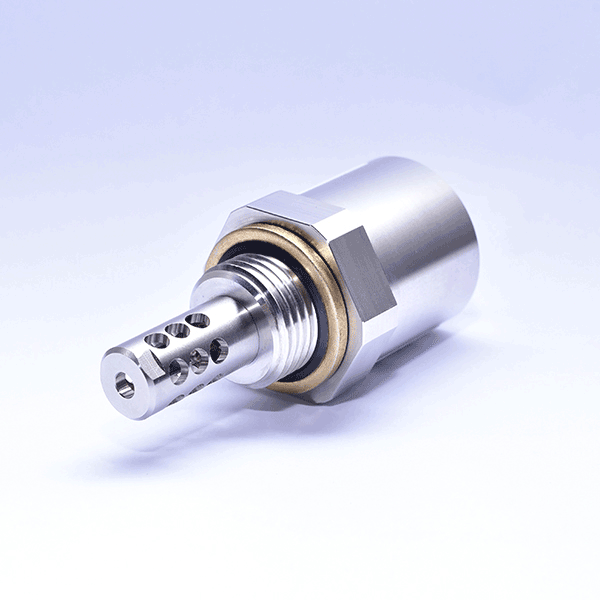

Kongter KT-200 ຄວາມຊຸ່ມຊື້ນໃນເຄື່ອງສົ່ງນ້ໍາມັນ
Water activity
Measurement range: 0 ~ 1 aw
Response time (typical): < 1 min
Water in oil
Measurement range: 0 ~ 100 ppm (suitable for Mineral transformer oil)
Accuracy: ±10% or 10ppm max
Temperature
Measurement range: -40~ 120 °C
Accuracy (at +25 °C): ± 0.3 °C
Working temperature: -40 … +80 °C
Storage temperature: -40 … +80 °C
Oil temperature permitted : -40 … +120 °C
Output
Digital signal:RS485 MODBUS, RS232 (optional)
Analog signal : 4~20mA, resistive load=500Ω
Others
Housing material: 304 stainless steel
Weight: 220g (transmitter), 270g(package)
Package size: 172×117×53 mm carton
Ingress Protection: IP66
Mechanical connections: G 1/2″ ISO or 1/2″ NPT
Pressure range: Max 100 bar
Resistance load: 250 … 500 Ω
Supply voltage: DC 9V-36V, >DC15V ( use 4-20mA)
Cable specification: M8 6 pin
Cable length: 2 m
Standard applied: CE certified, EN61326-1 EN61326-2-3 standard, ICES-003 B
