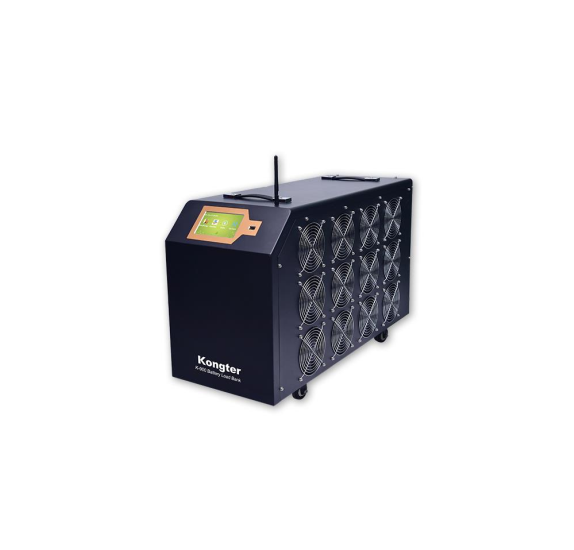

Kongter DLB-2225 ທະນາຄານໂຫຼດຫມໍ້ໄຟ (220V, 250A)
Power supply: AC 220V/110V, 50/60Hz
Cell type
1) Standard: 1.2V1, 2V, 6V and 12V
2) Customized: 12V ONLY or other uncommon battery types.
Discharge voltage range: 10V-264V (Constant current of 250A in the range of 176V-264V)
Discharge current range
Single load bank: 0-250A
Parallel loads: 0-1250A (up to 5 loads)
Parallel load with other models of same rated voltage.
Accuracy
Current: 1%
Voltage: 0.5% – 0.8%
Resolution
Current: 0.1 A or 0.5%
Voltage: 0.001 V
Sampling interval: 5s –1min
Discharge pattern: Constant current discharge
Display: 128*64 pixel, 5” TFT touch screen (resistive screen)
CDL power supply: 9~36Vdc
CDL measurement range: 0~15Vdc
Data transfer: USB, Wifi (for CDL to load bank and PC)
Cooling: Forced air cooling
Operation temperature: 0℃～40℃ (32 – 104 °F)
Humidity: 5%～90% Relative humidity
Standard: CE marking, EMC standard
Main unit dimension: 300*425*896mm
Main unit weight: 45 kg (99 lbs)
