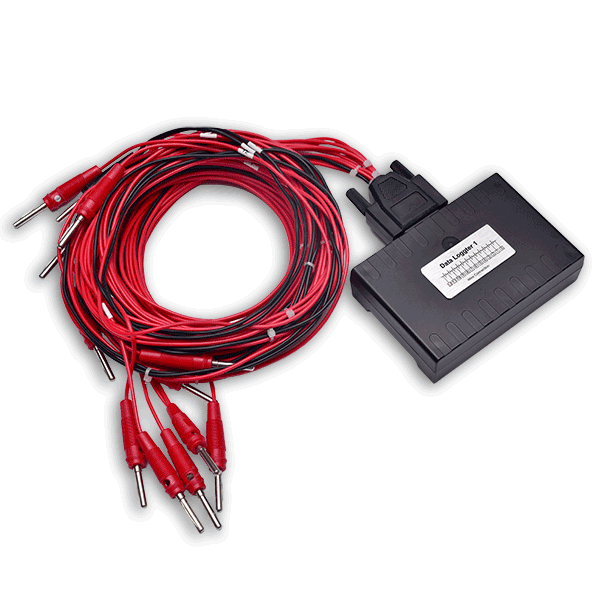

Kongter BDL-3927 ຕົວບັນທຶກຂໍ້ມູນຫມໍ້ໄຟ
Cell voltage: 0~16V (±0.5%)
String voltage: 12~700V (customized) (±0.5%)
Current testing: 0~1000A (customized CT) (±1%)
Temperature measurement: -25~55℃ (±1℃)
Power supply:
Cell Data Logger (CDL): 10-90V from battery
String Data Logger (SDL): DC24V±15% from battery
PC software: Monitor and data management
Communication: Wifi
Communication distance between PC and data loggers: 0-300m (Router with LAN), 0-50m (Router with wifi)
Communication frequency: 2.4GHz
Weight: 0.15 kg/per module
Size: 28×80×110 mm
Warning for: Communication disconnection, Overvoltage and Low voltage
Working environment: Temperature: 0~55℃, Relative humidity: ≤85%RH
Data sampling interval: 0.1 second/point
