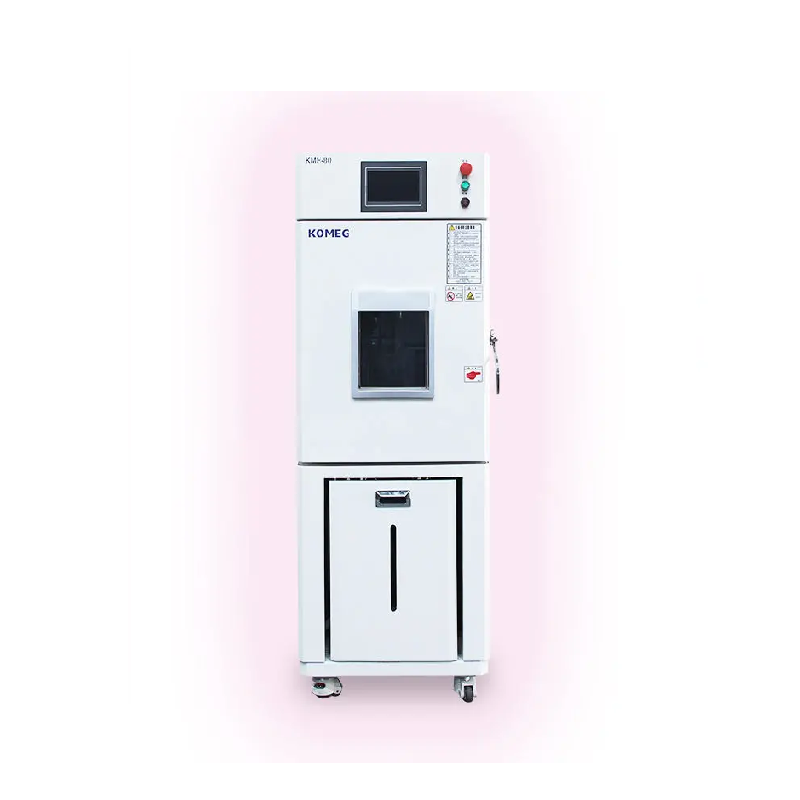

KOMEG KMH-80S ຫ້ອງທົດສອບອຸນຫະພູມແລະຄວາມຊຸ່ມຊື່ນ (-70℃ ～ +150℃)

Temperature range: -70℃ ～ +150℃

Temp Deviation: ≦ ± 2.0℃

Temp Fluctuation: ±0.5℃

Temp Uniformity: ±2.0℃

Heating up rate: -70℃↑ + 100℃ about 60min (no-load, ambient temperature +25℃)

Cooling rate: 20 ℃ to -70℃ about 80min (no-load, ambient temperature +25℃)

Humidity range: 20%R.H～98%R.H

Humidity deviation: ±3.0％RH

Humidity uniformity: 3.0％RH (no-load)

Humidity fluctuation: ±2.0％RH

Chamber size: Workspace volume: 400W x 500H x 400D mm

Exterior size: W 600 × H 1460 × D 1220 mm (about)

Insulation materials: rigid polyurethane foam insulation layer + glass fiber.

Door: Single door, left open

Observation window: With observation window W216×H230mm, multi-hollow electric, insulation coated glass prevent condensation effectively

Lighting device: LED Lighting device *1 located on observation window

Heating: High quality nickel-chromium, alloy wire electric heaters, Non-contact control mode(SSR)

Cable port: Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover

Water supply system: Water pump automatic supply
