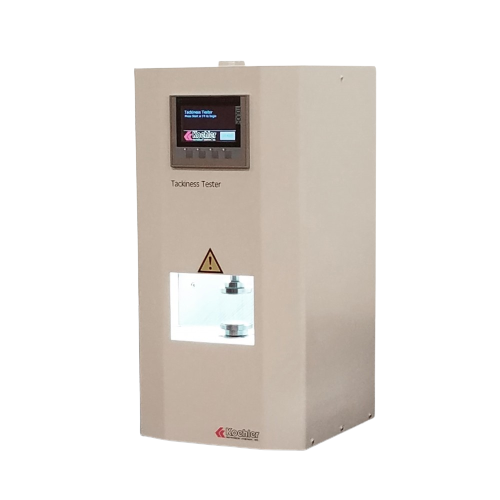

Koehler K95200 ຕົວທົດສອບຄວາມເຄັ່ງຕຶງ (100N, <0.1N)

Measures the cohesive and adhesive tactile properties of greases and provides numerical and graphical results.

Specifications

- Accuracy: <0.1 N

- Max. Test force: 100 N

- Load system: Electromechanical

- Test sample Size: 5 g

- Test time: Approx. 120 s

- Results: in N, N/mm2 , N/in2

- Test speed: Standard 250 mm/s

- PLC: Siemens System + HMI

- Interfaces: Ethernet

Temperature range (Optional): ambient -80°C (50-175°F)

Electrical requirements

- Voltage: 110-230V 50/60Hz

- Power: 150W Max.

Dimensions

- LxWxH,in.(cm): 12.6x11.8x24.4 (32.0x30.0x62.0)

- Weight: 66 lbs (30kg)
