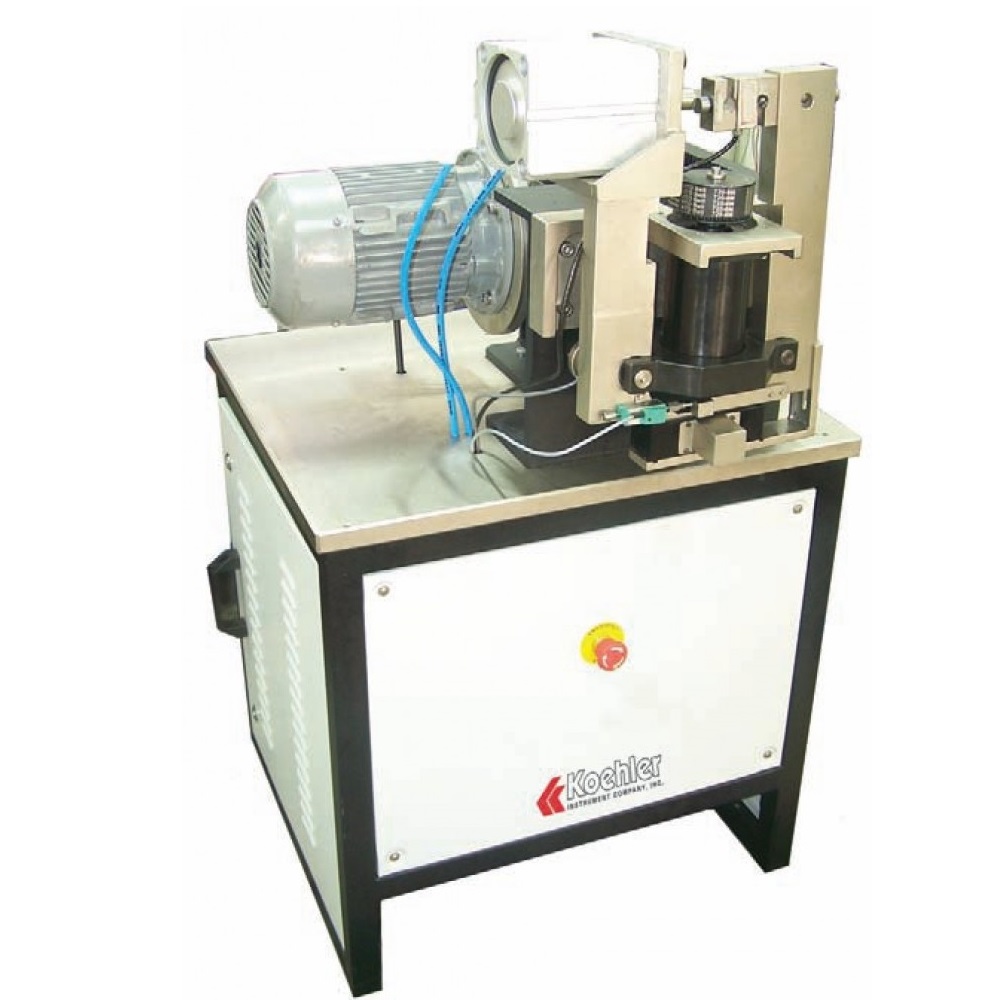

Koehler K95190 Pin ແລະ Vee Block Tester (0~4500 lbf; 100~500rpm)
- To evaluate wear preventative and load carrying properties of fluid lubricants, and endurance (wear) life of film lubricants.
- Pin and Vee blocks are immersed in lubricant fluid under test in heated test cup.
Specifications
- Conforms to the Specifications of: ASTM D2625, D2670, D3233, D5620; FTM 791C-3807.1, FTM 791C-3812.1
- Test load: 0 to 4500 lbf
- Torque: 0 to 100 in-lb
- Speed: 100 to 500 RPM
- Temperature: Ambient to 200°C
- Duration: 0 to 999.9 minutes
Electrical requirements: 230V, 50/60Hz, 2 KVA, 1 Phase
Included accessories
- Calibration Kit
- Measuring Microscope
- Data Acquisition Software
- Steel Ruler, 6”
- Brinell Ball Attachment
- Dust Cover
- Test Pin (50)
- Shear Pin (50)
- Vee Block (100)
