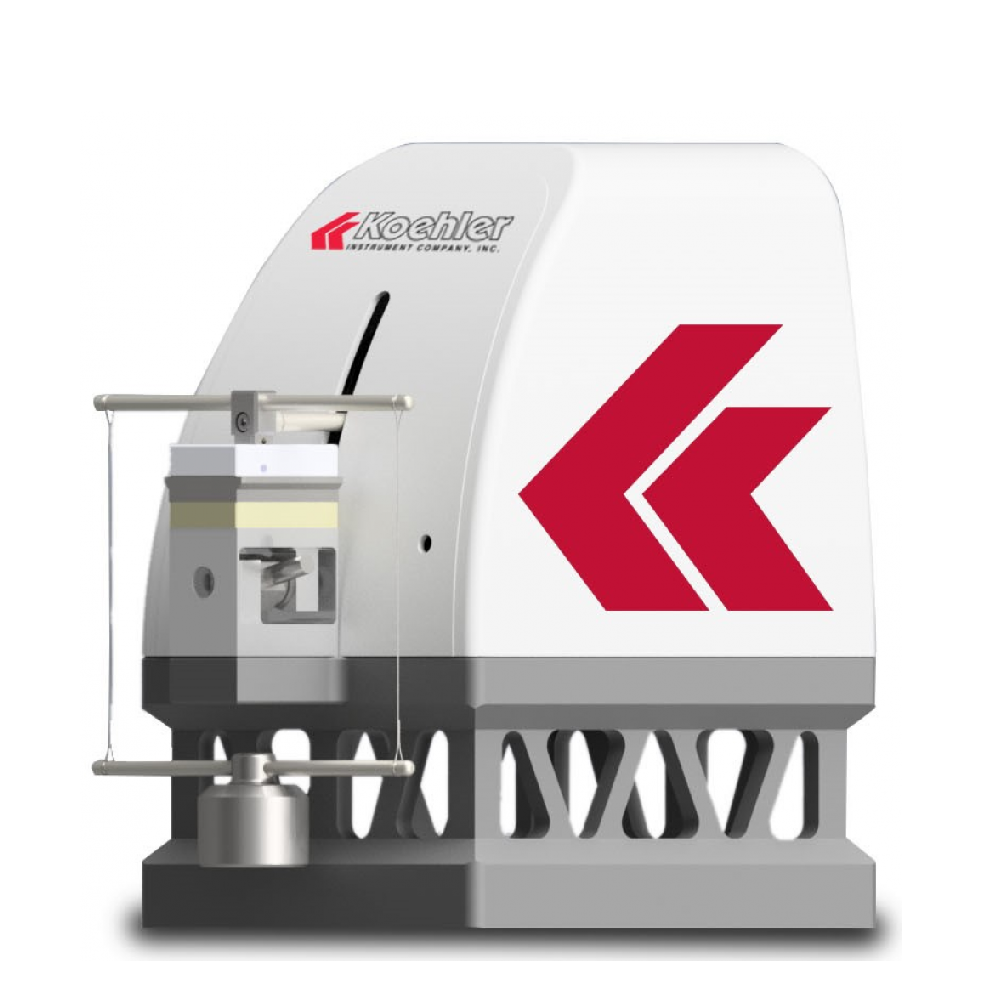

Koehler K93469 ຄວາມຖີ່ສູງ Reciprocating Rig (1~10N)
For evaluation of the lubricity of diesel fuels using a high-frequency reciprocating rig (HFRR).
Specifications
- Conforms to the Specifications of: ASTM D6079, D7688; ISO 12156; IP 450; EN 590; CEC F-06-A
- Stroke: 20 microns to 2 mm
- Frequency: 10 Hz to 200 Hz
- Test load: 1 N to 10 N through dead weights
- Frictional force: 0 to 10 N
- Temperature range: Ambient to 150 °C
- Test disc size: 10 mm dia. x 3 mm thick
- Test ball size: 6 mm diameter
Power supply: 230V 50Hz 30A
Additional accessories
- K93450-1 Test Plates and Test Balls (100 Pieces / Ea)
- K93460-2 Digital Microscope for Wear Scar Measurement External PC required for wear scar measuring and capture
- K93460-3 Humidity Controlled Cabinet - Custom built to fit the HFRR
