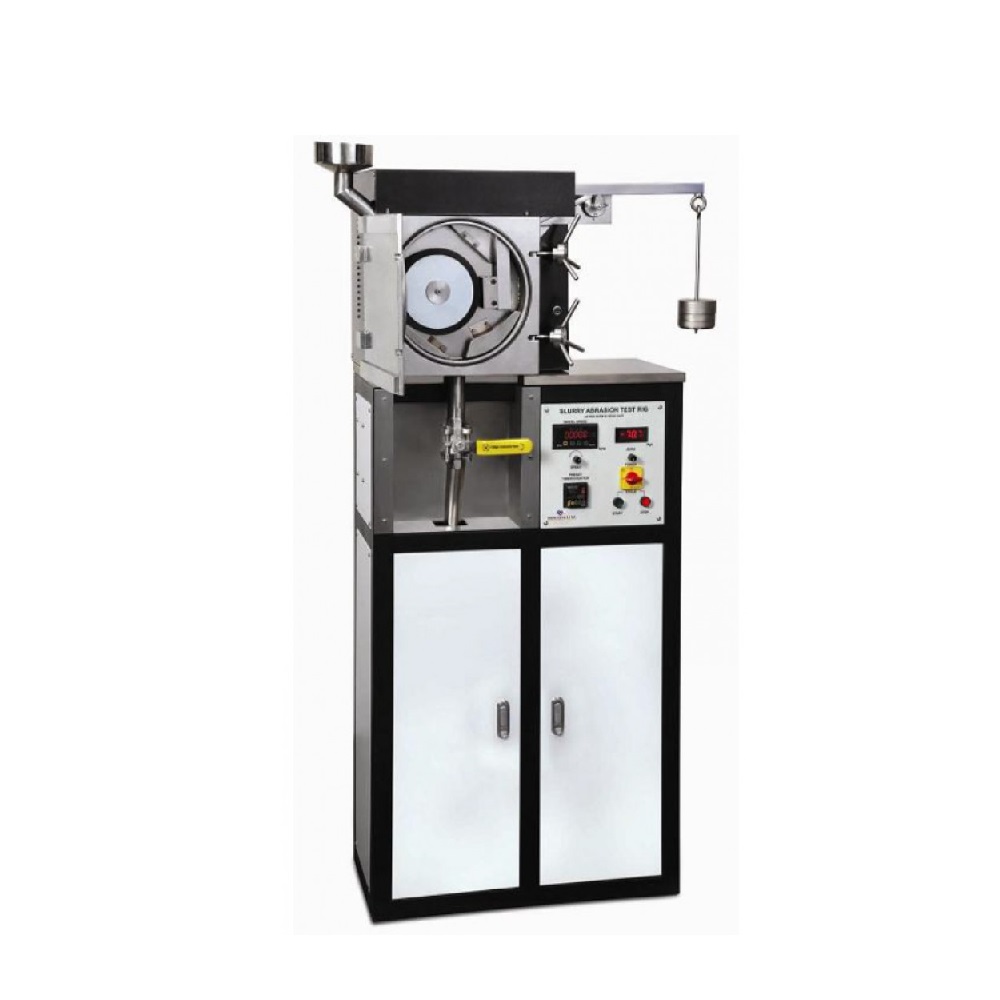

Koehler K92800 Slurry Abrasion Tester (100 to 250rpm)
- Covers the laboratory procedures for determining the resistance of metallic materials to scratching abrasion.
- The test area is submerged in wet abrasive slurry.
Specifications
- Conforms to the specifications of: ASTM G105, B611
- Abrasive slurry: Mixture of alumina (1.5kg) and water (0.94kg)
- Wheel speed: 100 to 250 rpm continuously variable
- Test load: G105: 100N to 300N
B611: 100N to 200N
- Wheel diameter: G105: 178mmx12.7mm
B611: 169mmx12.7mm
- Neoprene rubber wheel shore hardness: 50, 60, and 70 ±2
- Revolution controller: Microprocessor based digital preset counter 1 rev to 9999 revs
Electrical requirements: 440V, 50Hz, 15A, 3 Phase
Included accessories
- Slurry tank
- Slurry connection container
- Loading arm with lifting cam and easily changeable dead weights
- Neoprene rubber wheels
Additional accessories
- K92800-1 Test Wheel, 7” dia, 68-71 Shore A
- K92800-2 Test Wheel, 7” dia, 58-61 Shore A
- K92800-3 Test Wheel, 7” dia, 48-52 Shore A
- K92800-4 Wheel Dressing Tool K92800-5 Replacement Nozzle
