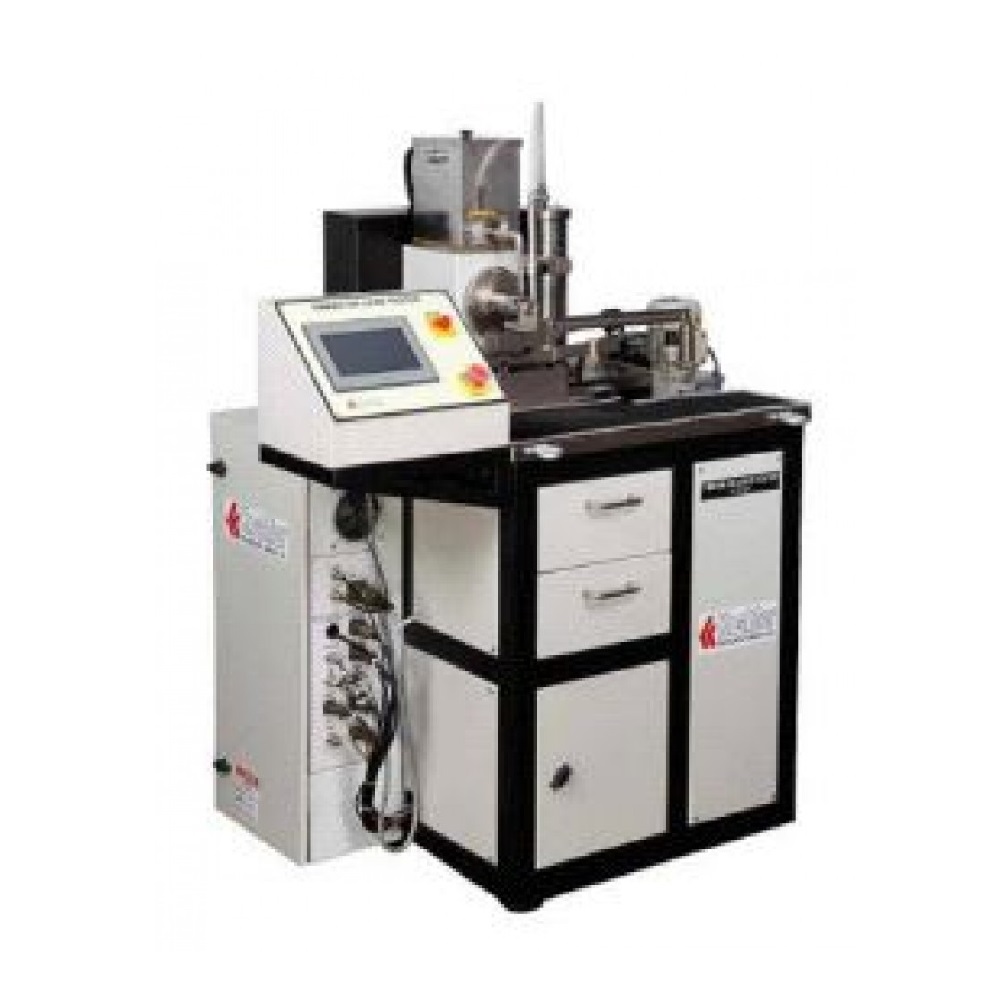

Koehler K92095 Timken Tester (100 to 800rpm; 0.9~1.3kg/s)
The Koehler K920X5 Timken test rig is used to measure the extreme pressure properties of lubricating grease and lubricating fluids.
Specifications
- Conforms to the specifications of: ASTM D2509, D2782
- Test rig outer diameter: 49.22mm
- Test block: 12.32x12.32x19.1mm
- Rotational speed: 100 to 800 RPM
- Rate of loading: 0.9 to 1.3 kg/sec
- Dead weights: 52 kg
- Auto fluid recirculation feeder: 3L capacity
- Auto grease feeder: 45±10 g/min
- Preset timer: 99hrs:59min:59sec
- Preset temperature controller: up to 100°C
- Loading arm: 1:10 Ratio
Electrical requirements: 220-240V 50/60Hz, Single Phase, 5.3A
Shipping information
- Shipping weight: 1372 lbs (622.3kg)
- Dimensions: 50x50x69 in. (127x127x175.3cm)
Included accessories
- Basic test rig
- 2 HP motor with frequency drive
- Precision spindle mounted rugged frame
- Loading lever with spring-loaded pan
- Friction lever with sliding weight & pan
- Load cell to measure normal load
- Dead weights counter weights
- Lubricating recirculating system
- Auto grease feeder test cups (qty. 25) test specimens (qty. 25)
- Power cables
- Calibration reports tool kit
Additional accessories
- K92090-5 Digital Camera with Microscope and Manually Controlled Stage and Image Capturing Data Acquisition System
- K92090-6 Acoustic Sensor
- K92090-7 Vibration Sensor
