Koehler K45704-TS ເຄື່ອງວິເຄາະການກັ່ນອັດຕະໂນມັດທີ່ມີຈໍສະແດງຜົນສໍາຜັດແລະເຄື່ອງຄອມພິວເຕີແບບປະສົມປະສານ (0-450°C, ±0.1°C)

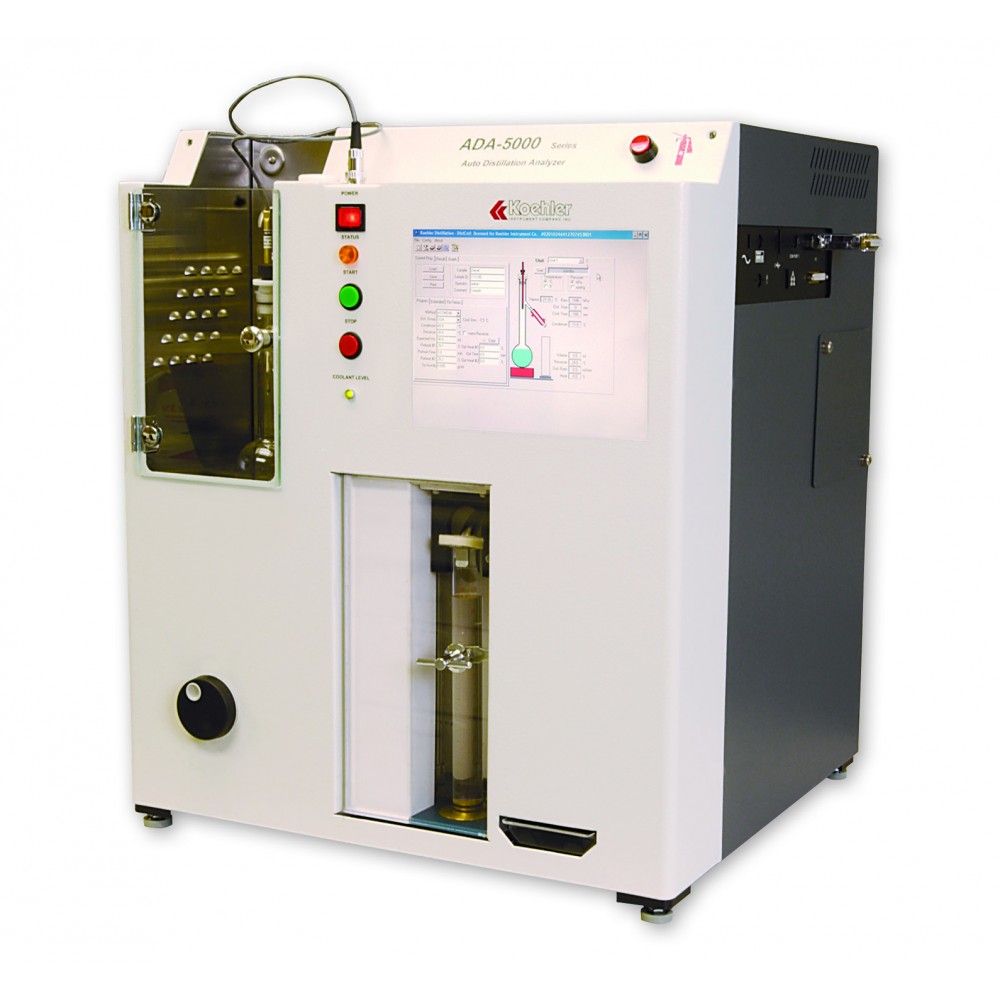

The Koehler Automatic Distillation Analyzer is designed to perform optimal distillation analyses of gasolines, fuels, oils, solvents, aromatics, napthas, kerosenes, hydrocarbons, and other volatile products to ensure conformity to rigid quality control standards.
Specifications
Conforms to the specifications of: ASTM D86, D285, D850, D1078, D4737; D189 Section 10; DIN 51751; ISO 3405; IP 123; IP 195; JIS K0066; JIS K2254; NF M 07-002
Temperature distillation range: 0 to 450°C (±0.1°C accuracy)
Condenser: -5 to 60°C (±0.1°C accuracy); closed loop system
Receiver chamber: 0 to 60°C (±0.1°C accuracy)
Distillation parameters
Distillation rate: 2 to 15mL/min in 0.1mL increments, user selectable
Receiver volume: 0 to 100mL (±0.01mL accuracy)
Barometic pressure: range 550 to 900 mm Hg (±1 mm Hg accuracy)
Environment: Operates at 0 to 25°C (113°F)
Electrical requirements: 230V 50/60Hz 10A
Dimensions: LxWxH,in.(cm): 21x21.5x27.75 (53.3x54.6x70.5)
Net weight: 230 lbs (91kg)
Shipping Information
- Shipping Weight: 260 lbs (95kg)
- Dimensions: 28 Cu. ft.
Included accessories
Distillation Flask, 125mL with Markings
Ceran Plate, 25mm dia. hole
Ceran Plate, 38mm dia. hole
Ceran Plate, 50mm dia. hole
3 Point Calibrated PT100 Thermometer with Cable and Plug
Special Graduated Receiver Cylinder with Base
Wiper for Condenser Tube
Dropping Plate
Teflon Plug for 125mL Flask
Silicone Plug for Flask Side Arm
Dry Point Detection Board
Windows®-based Automatic Distillation Software
Additional accessories
K45634 Distillation Flask, 125mL with Markings
K45635 PTFE Centering Stopper for 125mL Flask
K45655 Ceran Plate, 32mm dia. hole
K45656 Ceran Plate, 38mm dia. hole
K45657 Ceran Plate, 50mm dia. hole
K45656-A Ceran Plate, 25mm dia. hole
K45650 PT100 Thermometer with Cable and Plug
K45651-E Special Graduated Receiver Cylinder (with base)
K45651-B Special Graduated Receiver Cylinder (without base)
K45601-03014 Condenser Tube Cleaning Assembly
K45668 Dropping Plate
K45654-A Flask 200mL with Silicon Plug
K45652-C Silicone Plug
K45654 Automatic Dry Point Detection Kit for D850 and D1078
