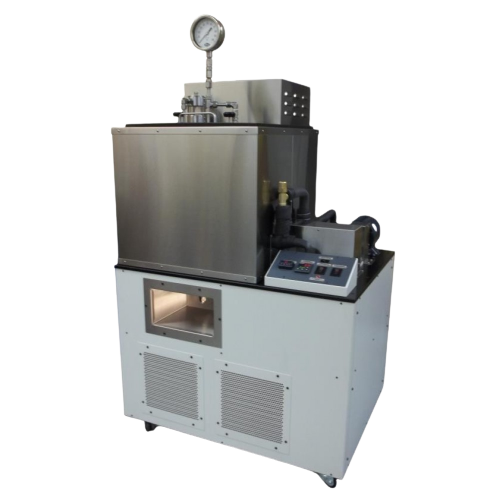

Koehler K22695 Viscometer ຄວາມກົດດັນອຸນຫະພູມຕ່ໍາ (–54°C)
Apparent viscosity is used to evaluate pumpability and handling characteristics of greases and is also suitable for analysis of adhesives, sealants and other semi-solid products.
Specifications
- Conforms to the specifications of: ASTM D1092
- Operating range: performs apparent viscosity determinations at sixteen different shear rates
- Low temperature pressure viscometer temperature range: ambient to –65°F (–54°C)
- Temperature control precision: ±0.5°F (±0.3°C) throughout the operating range
- Test chamber medium: denatured alcohol
Electrical requirements: 220-240V 50Hz
Dimensions
- lxwxh,in.(cm): 43 1⁄4x30 3⁄4x66 1⁄4 (110x78x168)
- Net weight: 640 lbs (290.3kg)
Shipping information
- Weight: 900 Ibs (408.2kg)
- Dimensions: 89.8 Cu. ft.
Included accessories
- Stainless Steel Grease Cylinder
- Assemblies (3)
- Thermocouples (3)
- Set of Stainless Steel Capillaries (Nos. 1-8)
- Interchangeable Pressure Gauges (4)
- Interchangeable Pump Drive Gears, 40 and 64-tooth
- Set of Wrenches (3)
Additional accessories
- K22690-0-27 Grease Cylinder Assembly for Low Temperature Pressure Viscometer (K22690 Series) - Includes piston and caps
- K226-0-16 Grease Cylinder Assembly for Pressure Viscometer - (K22600 Series) – Includes piston and caps
- K226-0-22 Capillary Set. Nos. 1-8
- 250-000-74F ASTM 74F Thermometer, Range –67.5 to –62.5°F
- 250-000-74C ASTM 74C Thermometer, Range: –55.4 to –52.6°C
