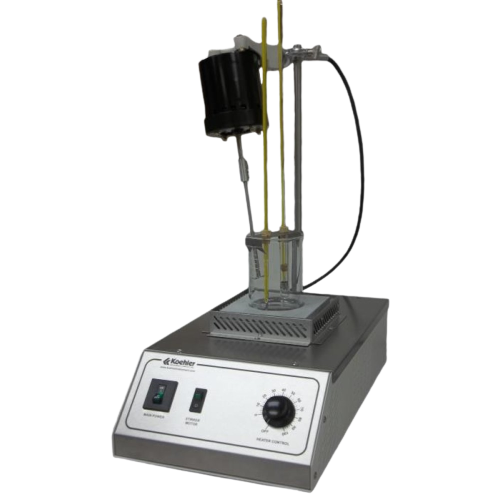

Koehler K19494 ອຸປະກອນການຫຼຸດລົງຈຸດ (288°C)
Performs dropping point determinations on lubricating greases at temperatures of up to 550°F (288°C).
Specifications
- Conforms to the specifications of:
ASTM D566, D4950; IP 132; ISO 2176; DIN 51801; FTM 791-1421; NF T 60-102
- Maximum temperature: 550°F (288°C)
- Bath medium: A high temperature heat transfer fluid having a flash point in excess of 400°C is recommended. Silicone fluid (P/N 355-001-002 — page 8) is suitable.
Electrical requirements: 220-240V 50/60Hz. Single Phase, 3.4A
Dimensions
- lxwxh,in.(cm): 9.5 x8x22.5 (24x20x57)
- Net weight: 24 lbs (10.9kg)
Included accessories
- Grease Cup, chromium plated brass
- Test Tube with indentations
- Cork Ring Guide
- Thermometer Corks (2)
- Thermometer Depth Gauge
- Polished Metal Rod
- Connecting Hardware
Additional accessories
- 250-000-02F ASTM 2F Thermometer. Range: 20 to 580°F
- 250-000-02C ASTM 2C Thermometer. Range: –5 to +300°C
- K194E7 Cup Plug Gauge
- Checks conformity of test cup with specifications
- Per Fig. 1, ASTM D566 and Fig. 1-E7, ASTM D2265
- K194E6 Polished Metal Rod
- K194EA Grease Cup
- K19492 Test Tube with indentations
- K19493 Thermometer Cork
- K19499 Cork Ring Guide
