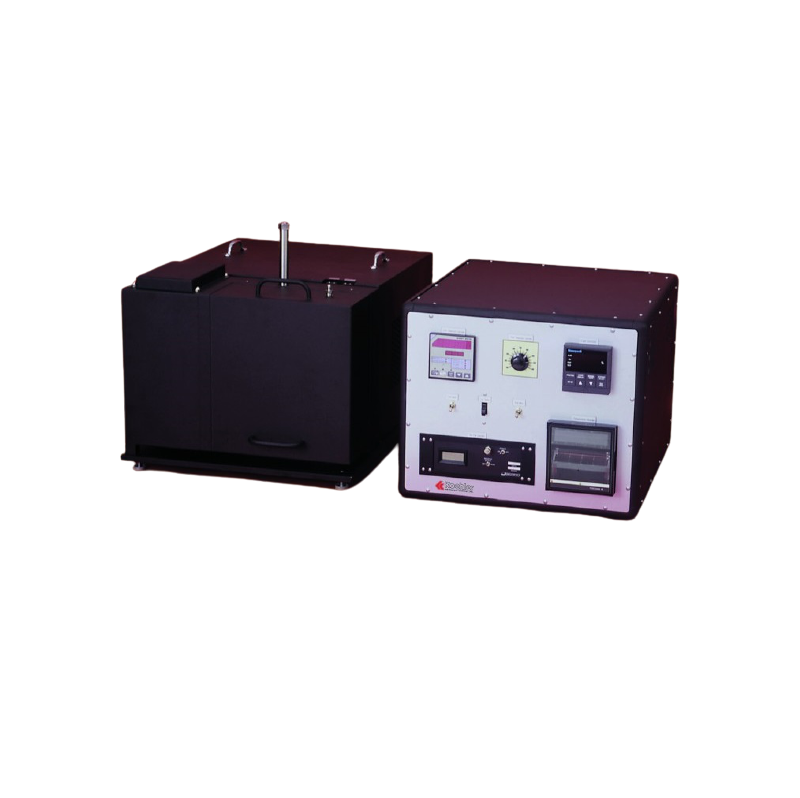

Koehler K18650 ອຸປະກອນທົດສອບປະສິດທິພາບ (220-240V 50Hz)
Performance Test determines the deterioration of gear lubricants under severe thermal oxidation conditions.
Specifications
- Conforms to the specifications of: ASTM D5704; STP512A L-60-1 Performance Test (formerly CRC L-60 Test); FTM 791-2504
- Controls and monitors:
+ Sample oil temperature:°C/°F, digital set point and display, user adjustable
+ Over temperature limit control: °F, user acceptable
+ Heating chamber air temperature:°C/°F
+ Air flow: L/h, digital set point and display, user adjustable
+ Test gear load: Volts DC, Amps. DC, digital display, user adjustable
+ Sample oil temperature recorder: Programmable microprocessor based strip chart recorder with digital display, °C/°F
+ Drive motor: 1725rpm thermally protected ball bearing type
+ Alternator: 45 ampere output
Electrical requirements: 220-240V 50Hz. Single Phase, 15A
Dimensions
- lxwxh,in.(cm): Test cabinet: 24x24x141⁄2 (61x61x37)
Control cabinet: 231⁄2x231⁄2x173⁄8 (60x60x44)
- Net weight: 330 Ibs (149.7kg)
Additional accessories
- K18661 Test Kit, for one test. Includes GA34 test gear, GA50 test gear, R-14 test bearing, viton shaft seals (2),
- O-ring seal, copper test strips (2)
- 380-150-001 Silicone Carbide Paper, 150-grit (pack of 50)
