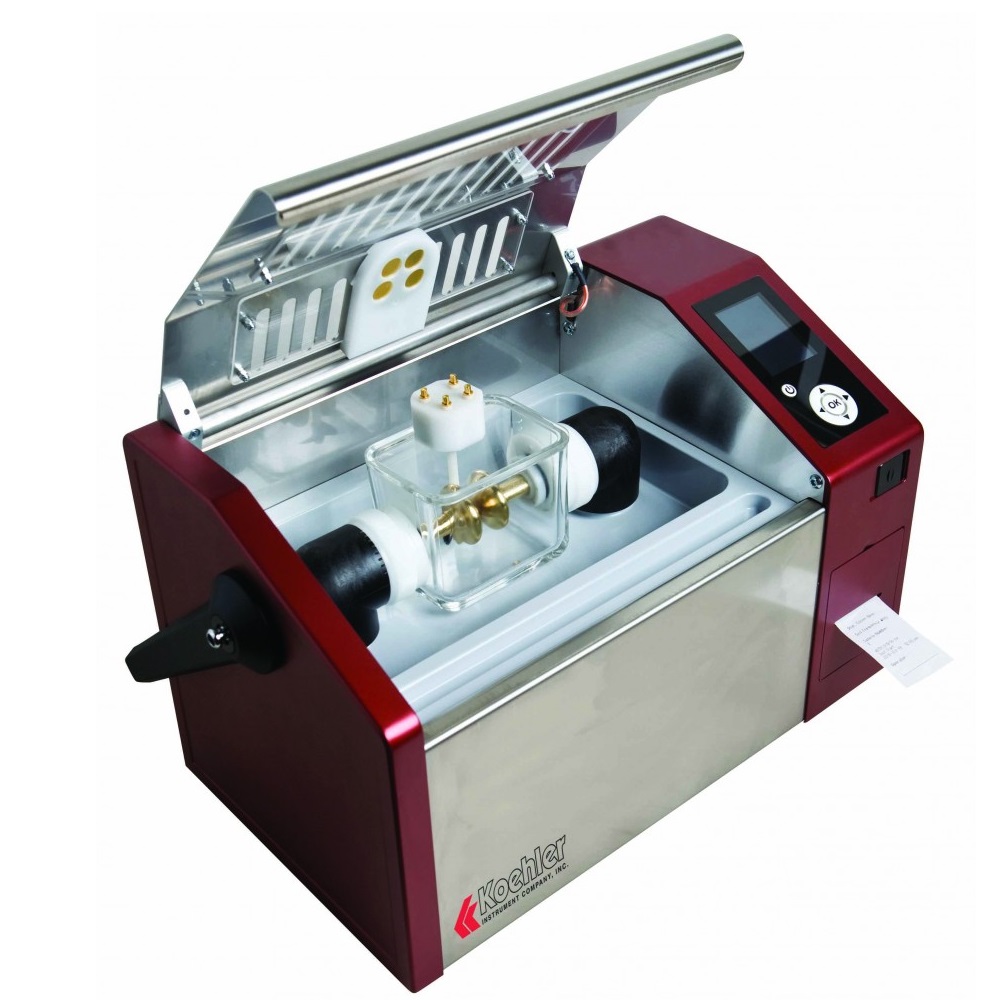

Koehler K16175 ເຄື່ອງທົດສອບການແຍກ Dielectric ອັດຕະໂນມັດ (0-75kV ±1kV)
Determination of the dielectric breakdown voltage of insulating oils provides an early detection method for any reduction in the insulating properties.
Specifications
- Conforms to the specifications of: ASTM D877, D1816; BS EN 60156; CEI EN 60156; IEC 156; VDE 0370 Pt. 5
- Output voltage: Up to 75kV rms symmetrical
- Voltage measurement accuracy: 0-75kV ±1kV
- Voltage slew rate: 0.5-10kV/s
- Resolution (displayed): 0.1kV
- Power supply: 85V-264V, 47Hz-63Hz, 12V external supply
- Power consumption: 60VA
- Internal rechargeable battery: 1x12V/7.2Ah
- Switch-off time on flashover: <5μs
- Measurement of oil temperature: 0-100°C/32-212°F
- Temperature resolution: 1°C/1.8°F
- Display: 2.8” color (ultra bright)
- PC Software: Included
- Printer: Dot Matrix Hard Copy Output
- Interface: Bluetooth
- USB: USB memory stick
- Operating Temperature: -5°C-45°C (23°F-113°F)
- Storage temperature: -20°C-60°C (-4°F)
Electrical requirements: 100-240V 50/60Hz
Dimensions
- wxdxh,in.(cm): 16.9x11x9.85 (43x28x25)
- Net weight: 48.5 lbs (22kg)
Included accessories
- Calibration Sheet
- AC Power Cable
- Integrated Battery
- User Manual
- PC Software
- Integrated Printer
Additional accessories
- K16175-23 IEC156 Test Cell with VDE Electrode
- K16175-24 IEC156 Test Cell with Sphere Electrode
- K16175-12 Spacer Gauge, 1mm
- K16175-13 Spacer Gauge, 2mm
- K16175-14 Spacer Gauge, 2.5mm
