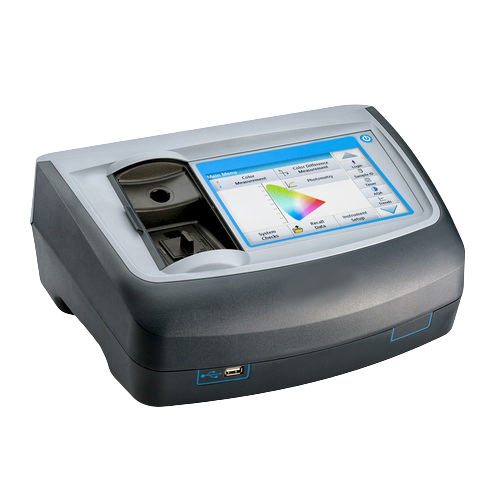

Koehler AC100 Petroleum Colorimeter (400 color measurements)
The K13270 utilizes reference beam technology to measure the four most important color scales used for liquid chemicals, resins, oils, fuels, and fats for liquid color measurement.
Specifications
- Conforms to the specifications of: ASTM D156, D1544, D1209, DIN 6162
Data log for 400 color measurements
- Beam height: 10 mm
- Data storage: 400 color readings
- Interface: 2 x USB Type A, 1 x USB Type B, 1 x EtherNet
- Max. Storage Humidity: 80%
- Max. Operating Humidity: 80%
- Operating temperature range: 10 to 40°C
- Optical path length: 10 mm - 50 mm
- Optical system: 0° / 180° rectilinear
- Photometric accuracy: 1% at 0.5 to 2.0 Abs, 0.005 Abs at 0 to 0.5 Abs
- Photometric linearity: < 0.5 % to 2 Abs, 1% with neutral glass at 546 nm
- Photometric measuring range: ± 3.0 Abs (wavelength range 340-900 nm)
- Reproducibility: ± 0.2 % transmission
- Spectral bandwidth: 5 nm
- Standard Illuminant: C
- Standard observer: 2°
- Wavelength accuracy: ±1.5 nm
- Wavelength calibration: automatic
- Wavelength range: 380 nm to 720 nm
- Wavelength reproducibility: 0.1 nm
Electrical requirements
- 100-240V / 50-60Hz
- Output: 15V/40 VA
Dimensions
- (H x W x D): 15.1x35.0x25.5cm(5.94x13.87x10.04in)
- Net weight: 4.20 kg (9.26lbs)
