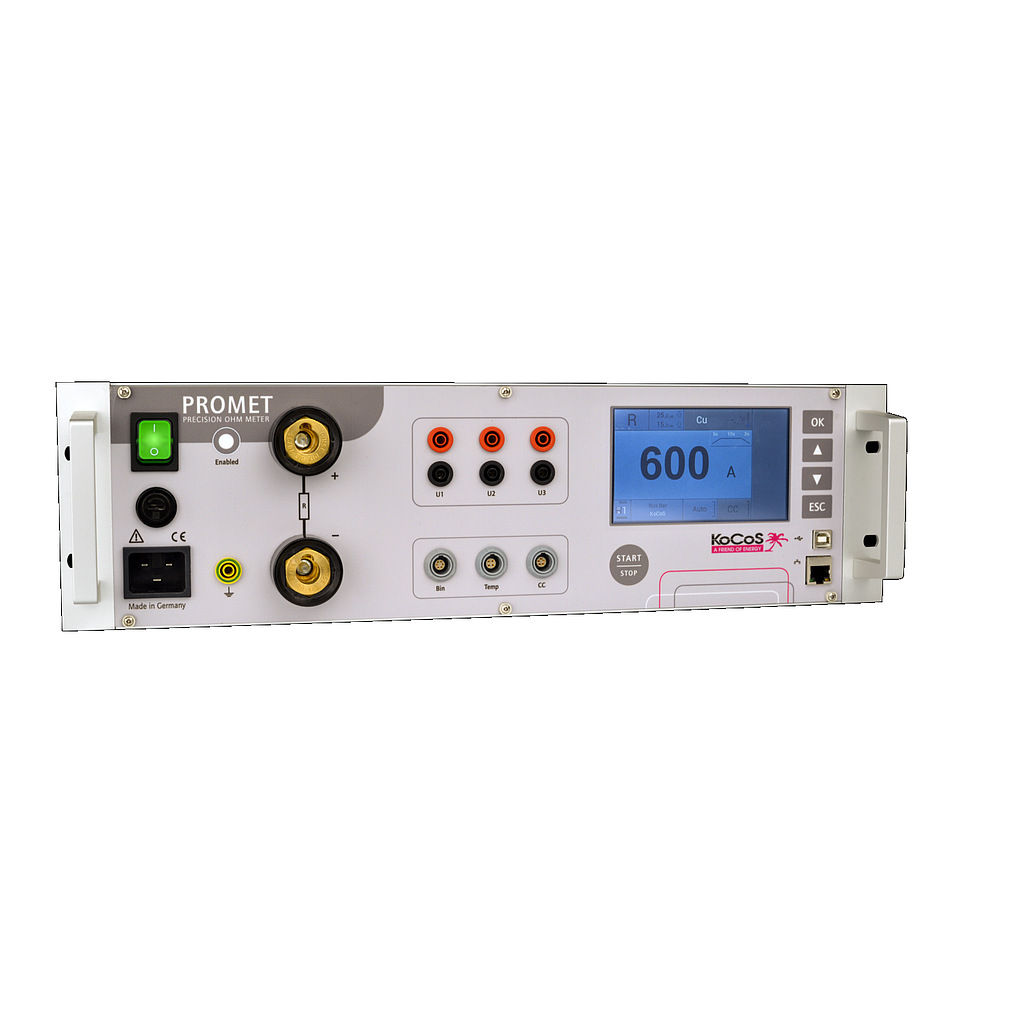

Test current: up to 600 A
Outputs: 1
Output voltage: 5 VDC
Voltage measurement – Range: 20 mV, 200 mV, 2 V
Voltage measurement – Inputs: 3
Resistance measuring range: up to 250 mΩ
Accuracy: ≤ 0.1% of range
Display: High-resolution, resistive 5" touch screen
Operation: Touch screen, 5 function keys
Connections: 13 mm high-current sockets and 4 mm safety sockets
PC interfaces, control: RJ45 (Ethernet), USB-B
Further interfaces: Temperature sensor, current clamp, binary inputs/outputs
Supply voltage: 85…265 VAC, 47…63 Hz, 120…265 VDC
Housing: 19" housing for rack-mounting, 3 U (stationary), optional portable housing
Weight: 10.5 kg
Functions: Resistance measurement on ohmic resistances, definition and execution of current ramps during measurement, determination of the quality factor of connections, external control via PC/software, resistance measurement with earthing on both sides, resistance measurement with temperature compensation, static and dynamic resistance measurement on switchgear devices
