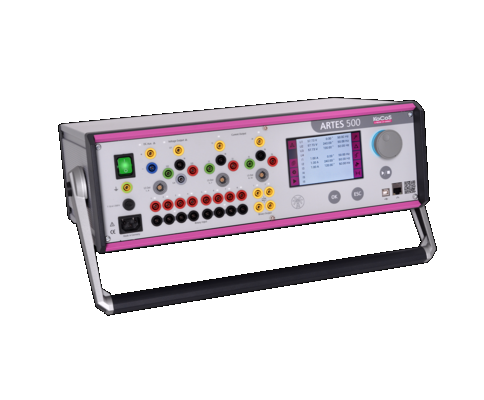

KoCoS ARTES 500 ການທົດສອບການສົ່ງຕໍ່ປ້ອງກັນ (DC…3 kHz)
Sources: 4 voltage and 6 current outputs
Frequency range: DC…3 kHz
Transient signals: DC…4 kHz
Phase angle: 0…360°
Voltage outputs – 4-phase (L-N): 4 × 0…300 V / 75 VA
Voltage outputs – 1-phase (L-L): 1 × 0…600 V / 150 VA
Current outputs – 6-phase: 6 × 0…20 A / 50 VA
Current outputs – 3-phase: 3 × 0…40 A / 100 VA
Current outputs – 1-phase: 1 × 0…60 A / 100 VA
Low-level signal outputs: 10 separately and independently adjustable outputs, output range 0…10 Vpk
DC output: 12…260 VDC, 50 W, max. 2 A
Binary inputs – Quantity: 8 inputs
Binary inputs – Groups: 2 galvanically isolated groups with 4 inputs each, each group configurable for measuring dry/wet contacts
Binary outputs: 2 potential-free, galvanically isolated relays
Operation – PC: ARTES testing software for Windows® 7 / 8 / 10 / 11
Operation – Stand-alone: 5" touch screen, 3 function keys, jog wheel
Measurement connections: All connections located on the front panel, device can be operated upright
Interfaces: USB, Ethernet
Time synchronization: Internal GPS receiver
Status LEDs: Indication of active current and voltage outputs and status of binary inputs and outputs by LEDs
Supply voltage: 100…265 VAC, 47…63 Hz / 120…265 VDC
Housing: 19" housing, 3U, handle serves as stand
Dimensions: 470 × 162 × 326 mm (W × H × D)
Weight: 13.5 kg
