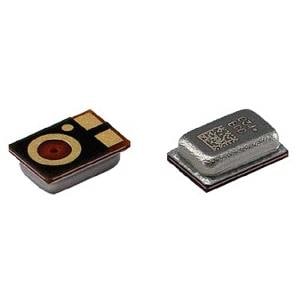

Knowles SPV0142LR5H-1-8 ກ້ອງຈັບສຽງຊິໂລນທີ່ມີພອດລຸ່ມອານາລອກ SISONIC MEMS MICROPHONE

Depth: 0.9 mm

Shape: Rectangular

Width: 1.85 mm

Length: 2.75 mm

Port Type: Bottom

Dimensions: 2.75 mm x 1.85 mm x 0.9 mm

Output Type: Analog

Sensitivity: - 38 dBV/Pa

Mounting Style: SMD/SMT

Termination Style: SMD/SMT

Sound Pressure Level: 124 dB SPL

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.5 V

Directional Properties: Omnidirectional

Operating Supply Current: 132 uA, 142 uA

Operating Supply Voltage: 1.5 V to 3.6 V

SNR - Signal to Noise Ratio: 62.5 dBV/Pa

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 30 C
