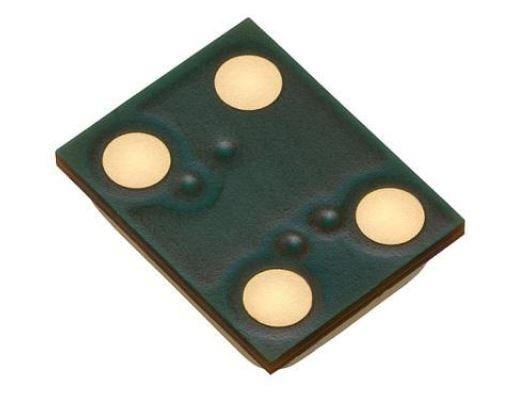

Knowles SPU0414HR5H-SB-7 ກ້ອງຈັບສຽງຊິລິກອນ Amplified Silicon Microphone SILICON MICROPHONE

Shape: Rectangular

Width: 2.95 mm

Length: 3.76 mm

Impedance: 400 Ohms

Port Type: Top

Dimensions: 3.76 mm x 2.95 mm x 1.1 mm

Technology: MEMS

Output Type: Analog

Sensitivity: - 22 dBV/Pa

Mounting Style: SMD/SMT

Frequency Range: 100 Hz to 10 kHz

Termination Style: Solder

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.5 V

Directional Properties: Omnidirectional

Operating Supply Current: 155 uA

Operating Supply Voltage: 1.5 V to 3.6 V

SNR - Signal to Noise Ratio: 59 dBA

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
