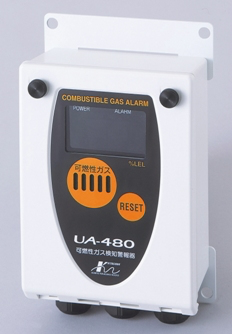

Kitagawa UA-480 ເຄື່ອງວັດແທກສັນຍານເຕືອນໄພແກັດ (0-100%LEL)

Measuring Gas: Hydrocarbon in the air or inert gas

Detection Principle: Non-dispersive infrared ray

Measuring Range: 0-100%LEL

Display Method: 3-digit LED digital display

Alarm Method: Flashing red LED and intermittent buzzer sound

Alarm Setting: Upper limit, adjustable (standard 20%LEL)

Failure display: Flashing red LED and intermittent buzzer sound

Power Source: AC100V±10V, 50/60Hz

Alarm contact output: Non-voltage 1a or 1b contact, AC125V, 0.6A (resistance load)

Analog output: DC4-20mA

Detection Point: Single point

Operating Temperature Range: -10-40℃

Installation: Wall-mount type (flush-mount type is optional)

Dimensions: 120(W)×205(H)×69(D)mm

Weight: Approx. 0.9kg
