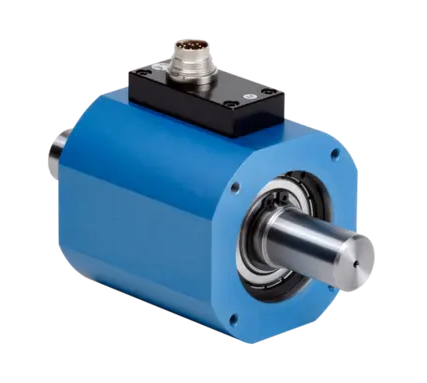

KISTLER 4520A ເຊັນເຊີແຮງບິດຂອງເພົາ (200 N·m)
Basic Mechanical Data
Measuring range: 1 ~ 200 N·m
Rated torque (Mnom): 1 ~ 200 N·m
Overload capacity:
Alternating torque: 1 × Mnom
Maximum: 1.5 × Mnom
Speed measurement: pulses/rev.
Rated speed:
1 ~ 10 N·m: 10,000 1/min
20 ~ 200 N·m: 8,000 1/min
500 ~ 1,000 N·m: 7,000 1/min
Case material: Anodized aluminum
Degree of protection: IP40
General Electrical Data
Cut-off frequency (-3 dB): 1.5 kHz
Accuracy class: 0.5
Linearity error (including hysteresis): < ±0.5 % FSO
Output signal: ±0 ~ 10 VDC
Output at Mnom (rated): 10 VDC
Load resistance: >10 kΩ
Thermal zero drift: < ±0.3 % FSO / 10 °C
Thermal sensitivity shift: < ±0.3 % FSO / 10 °C
Control signal:
100 % control input
“On” 5 ~ 30 VDC
“Off” 0 ~ 2 VDC
Operating temperature range: 10 ~ 60 °C
Service temperature range: 0 ~ 70 °C
Storage temperature range: -25 ~ 85 °C
Electrical connection: Built-in 12-pin connector
Supply voltage: 18 ~ 26 VDC
Power consumption: < 2 W
