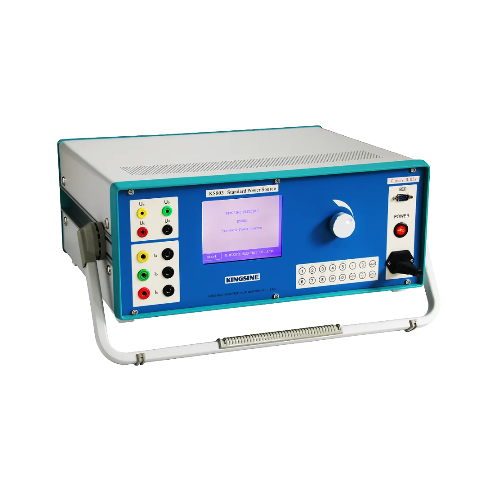

Kingsine KS803 ແຫຼ່ງມາດຕະຖານ AC/DC/Harmonic ສາມເຟດ ແລະເຄື່ອງປັບທຽບ (0.05 class)

Output & Measuring AC Voltage

Available Ranges: 10V, 30V, 100V, 300V, 750V, auto-shift

Adjustment range: 0~120%Rg

Adjustment fineness: Range x 0.01%

Resolution: Range x 0.01%

Accuracy: 0.05%Rg

Stability: 0.01% / 1min

Output & Measuring AC Current

Available Ranges: 100mA, 1A, 5A, 10A, 25A; auto-shift

Adjustment range: 0~120%Rg

Adjustment fineness: Range x 0.01%

Resolution: Range x 0.01%

Accuracy: 0.05%Rg

Stability: 0.01% / 1min

Output & Measuring AC Power

Adjustment fineness: Range x 0.01%

Resolution: Range x 0.01%

Accuracy: 0.05%Rg (Factor>0.5)

Stability: 0.01% / 1min

Output & Measuring AC Frequency

Frequency Range: 45.000~65.000Hz

Adjustment fineness: 0.001Hz

Accuracy: 0.01%Rd

Output & Measuring AC Phase Angle

Phase Angle Range: 0.00º~359.99º

Adjustment fineness: 0.01º

Resolution: 0.01

Accuracy: 0.05º

Output & Measuring AC Power Factor

Output Range: -1 ~ 0 ~ +1

Measuring Accuracy: 0.0005

Adjustment fineness: 0.0001

Output & Measuring Harmonic

Harmonic Setting: 2~31

Harmonic Content: voltage, current ≤30% (as against fundamental)

Harmonic Output Accuracy: 0.1% (1st~19th, as against fundamental)

0.2% (20th~31st, as against fundamental)

Harmonic Phase: 0~360º, adjustable

Measuring Electrical Energy

Measuring Accuracy: 0.1%Rd, PF≥0.5

Voltage Range: 100V, 220V, 380V

Current Range: 0.05~24A

Distortion of AC Outputs

Distortion: <0.2% (non-capacitance load)

Max Load Capacity of AC Voltage & Current

Voltage Output: 25VA max

Current Output: 25VA max

Power Supply & Environment

Ambient Temperature: 22ºC ± 1ºC

Working Temperature: 0ºC~40ºC, humidity≤85%RH

Nominal Input Voltage: 115/230Vac appointed, ±10%

Nominal Frequency: 50/60Hz

Connection Type: Standard AC socket 60320

Weight & Size

Dimensions(W x D x H): 450mm×380mm×190mm

Weight: 25kg
