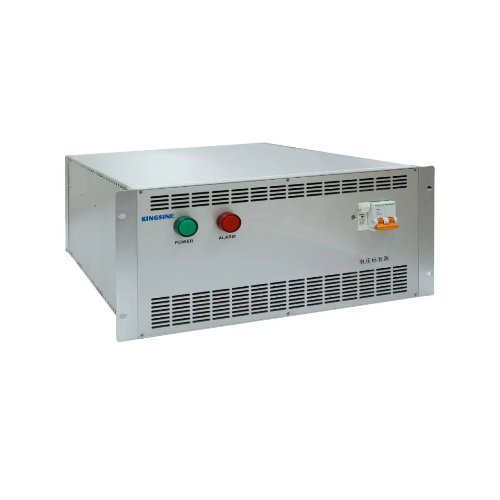

Kingsine KS1212 ແຫຼ່ງມາດຕະຖານການແຜ່ກະຈາຍຢູ່ປາຍຍອດເວທີການທົດສອບອັດຕະໂນມັດ (12x450V + 12x100A.)

AC Voltage output

Range: 12×0...450 V

Power: >300VA/Phase

Accuracy: <±0.05%

Resolution: 1mV

AC Current Output

Range: 12×0...100 A

Power: >750VA/ Phase

Accuracy: <±0.05%

Resolution: 1mA

DC Voltage output

Range: 12×0...450 V

Power: >300VA/ Phase

Accuracy: <±0.2%

Resolution: 1mV

DC Current output

Range: 6×0...50 A

Power: >500 VA/ Phase

Accuracy: <±0.2%

Resolution: 1mA

Others

Frequency:

+ Range: 5...1000 Hz

+ Accuracy: <0.001 Hz at 0...65 Hz

<0.01 Hz at 65...450 Hz

<0.02 Hz at 450...1200 Hz

+ Resolution: 0.001 Hz

Phase

+ Range: -360°...360°

+ Accuracy: <0.2°

+ Resolution: 0.1°

Timing

+ Range: 0.1 ms ... 1.5×105 s

+ Accuracy: <1 ms

Harmonic

Harmonic Times: 2...20 Times

Power supply

AC Voltage: 220V±20%

Range: 85V...264V AC

Power: 5000 VA

Frequency: 47 Hz...65 Hz

Operation Conditions

Temperature: -20℃…70℃

Humidity: ≤95%,

Others

Weight: <55 kg

Dimension: 358mm×149mm×297mm

Communication Port: 1×RJ45
