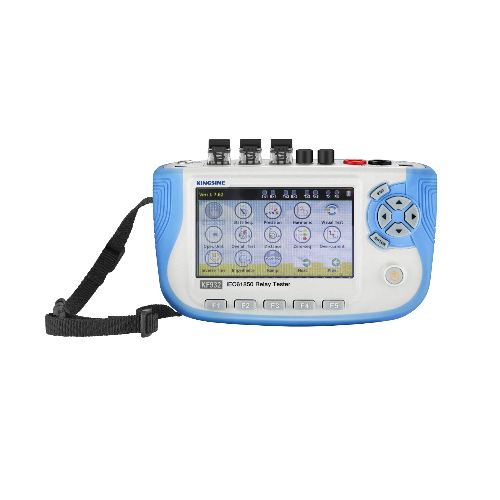

Kingsine KF932 IEC61850 ຊຸດທົດສອບ Relay

Power Supply

- Battery: Large capacity lithium battery

- Power Adapter:

+ Input： AC100～240V，50/60Hz，0.7A

+ Output： DC15V，1.66A

Power consumption

Power consumption: ≦6W

Working power supply: Continuous work for more than 10 hours

Optical Ethernet communication port

Model: 100Base-FX (100M Full duplex optical fiber network)

Port Type: LC

Wavelength: 1310nm

Transmission distance: ≧1km

Application: IEC61588 Times and other network messages

Optical serial port communication interface

Port number: 2 pcs

Port Type: ST

Wavelength: 62.5/125μmMultimode fiber，Wavelength850nm

Transmission distance: ≧1km

Application: Receive/Send IEC60044-7/8（FT3），IRIG-B Timing signal transceiver

Analog input communication interface

Port number: 1 pair

Port Type: Rubber terminal

Hard contact input/output communication interface

Port number: 2 pairs

Port Type: Aviation socket to rubber terminal

TF card slot interface

Port number: 1 pc

Application: TF card for importing the whole station configuration file , recording documents, storing / exporting test reports and upgrading software.

Analog input communication interface

Port number: 1 pair

Time signal

IRIG-B: Time accuracy<1us typ I

EC 61588: Time accuracy<1us typ

Mechanical parameters

Display screen: 4.3’touch LCD screen

Size: 176×100×58 mm

Weight: ≦0.75kg

Temperature range

Altitude: ≤5000m

Ambient temperature: Normal operating temperature：-10～55℃

Storage and transportation：-25～85℃

Relative humidity: 5％～95％

Atmospheric pressure: 60～106KPa
