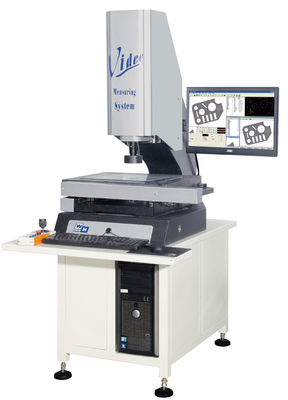

KINGPO WH-5040-CNC ເຄື່ອງມວດວັດຮູບພາບສອງມິຕິອັດຕະໂນມັດ (X: 500mm, Y: 400mm)

Operating stroke:  X: 500mm, Y: 400mm

External dimension: 1550x1100mmx1700mm

Weight: 950Kg

Machine accuracy: 4+L/250mm

Three-axis optical scale reading: 0.001mm

Workpiece height limit: 200mm

Sheet metal parts use powder coating paint

Zoom lens: Approx. 30-230X (The object field of view is about 5.3~0.8mm) (The larger the magnification, the smaller the field of view of the object)

One eyepiece

A flat glass

A correct glass

Workload: The test piece has a maximum load of 30kg

Power supply: 220V / 15A

Operating temperature: 20°C ± 2°C, Humidity: 40%~65%

A dedicated table for measuring instruments
