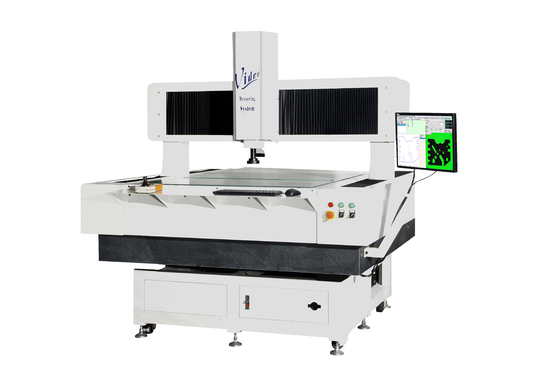

KINGPO WH-2018-CNC ເຄື່ອງວັດຂະໜາດຮູບພາບສອງມິຕິ (X: 1800mm,Y: 2000mm, 4+L/250mm)
Operating stroke: X: 1800mm,Y: 2000mm
External dimension: 2800x2950mmx2000mm (X x Y).
Weight: 6500Kg.
Machine precision: 4 + L/250mm
Three-axis optical ruler resolution reading: 0.001mm
Height of workpiece: 200mm
The plate is painted with powder coating
Zoom lens (multiplier): about 30-230x (about 5.3 ~ 0.8mm in the object's field of view) (the larger the multiplier, the smaller the object's field of view)
1 times eyepiece
Flat glass, correction glass each piece
Workload: the maximum load of the test piece is 30kg
Power supply: 220V / 15A
The operating temperature of 20 ℃ ± 2 ℃ and humidity: 40% ~ 65%
