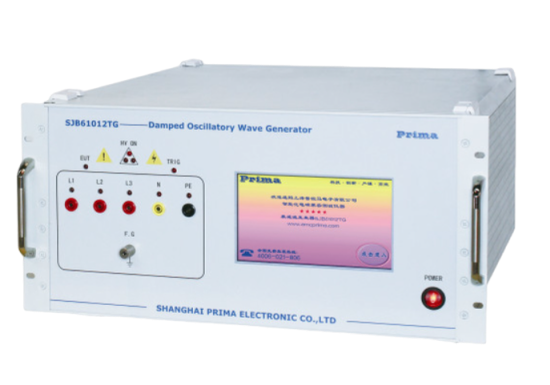

KINGPO SJB61012TG ອຸປະກອນຜະລິດໄຟຟ້າຊອກແວບກາງການດັບເຄື່ອງ (0.2 ~ ±3.3 kV, 100 kHz, 1 MHz)

Output voltage: 0.2~±3.3 K V

Oscillation frequency: 100 kHz,1MHZ

Pulse polarity: Automatic switching between positive and negative

Internal: 200Ω±20%

Pulse front: 75 ns ±20 per cent

Pulse repetition rate: 20-500 HZ, Adjustable

Interval pulse: 1s ~ 9999s

Pulse string duration: 1s ~ 9999s

Number of pulses: 1 ~ 9999

Sample coupling/decoupling network: Built-in, three-phase five-wire, 16 A

Working Power: AC220V±<unk7>50/60

Ambient temperature: 15℃ -35℃

Dimensions: 480*500*175 mm
