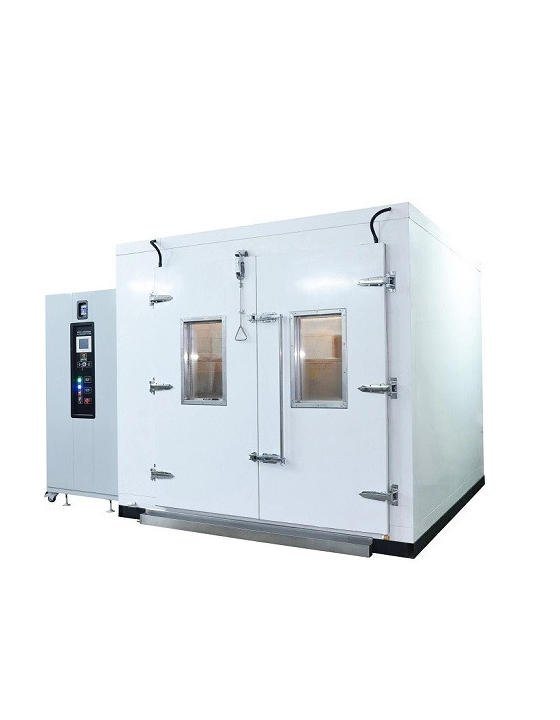

KINGPO KP-WI1500 ຫ້ອງທົດສອບສິ່ງແວດລ້ອນອຸນຫະພູມແລະຄວາມຊື່ນ (-50°C to +100°C, 40% to 98% RH)

Temperature range: -50°C to +100°C

Humidity range: 40% to 98% RH

Dimension (internal) (W x D x H): 1500 x 1500 x 3000 mm

Dimension (external) (W x D x H): 2850 x 1700 x 3200 mm

Ramp:

Variable, temperature 0~5°C/min & humidity 0~5%/min

(In average, no load)

Accuracy: Temperature ±1°C, Humidity ±2.5%RH

Interior walls: Stainless steel 304

Exterior walls: Cold rolled steel plate with baking finish

Temperature & humidity measurement and controller:

32-bit control and monitoring system

Interface facility with RS232

Programmable temperature and humidity controller

Viewing window: Multi pane glass window size

Port holes: 50 mm diameter for wire routing

Power supply requirement: Three phase, AC380 V ±10%, 50 Hz

Sound pressure level: <72 dB(A)

Condenser cooling: Water cooled

General technical specification

Thermal cyclic chamber:

Chamber with internal air circulation, and all heaters and cooling coil located behind/below the false sheet of the chamber and outside the working space

Interior:

Conditioning with air circulation to maintain uniform temperature

Interior has provision for arranging stainless steel shelves

Insulation:

Insulation is asbestos-free, CFC-free, with low thermal conductivity polyurethane (PU) foam

Cooling system:

Cascade type refrigeration system with hermetically sealed refrigeration cycles

Environmentally friendly and chloride-free refrigerant

Door:

Lockable front opening with double door latch, easy to open

Silicon gasket for perfect sealing

Viewing window:

Viewing interlock is sealed to avoid leakage and provided with heating to prevent condensation

Illumination:

Internal light on viewing window with external control

Temperature measuring and control system:

The temperature measuring and control system adopts a microprocessor system and is provided with a touch panel for monitoring and digital display

Supplied with support software capable of visualizing and graphically analyzing measured and recorded values

A. Graphical representation and digital display and control of set and actual values

B. Digital input and display of temperature in °C

C. Fault diagnosis system

D. Storage for 120 programs

Adjustable safety cut-out against high and low temperature

Facility to program temperature measurement using sensor PT100
