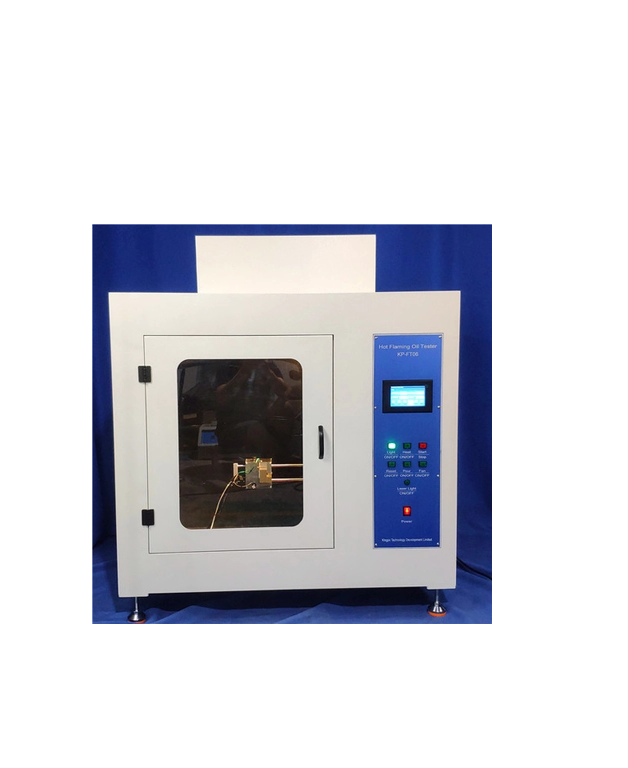

KINGPO KP-FT02 ເຄື່ອງທົດສອບແສງເພື່ອນເຂົາ (0~1000℃)
Needle burner: inner hole diameter Φ 0.5mm ± 0.1mm, Diameter,9mm≤Φ, length ≥ 35mm, stainless steel
Burner angle: 0°, 45° (adjust flame height)
Thermocouple: Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature-40°C~ 1100°C
Burning time: 0-999.9 s ± 0.1 s adjustable (usually selected for 30s)
Hold Burning time: 0-999.9 s ± 0.1 s, automatic recording, manual timeout
Flame Height: 12mm ± 1mm (with height measurement instruments)
Flame Gas: butane gas/Butane gas, min. 95% purity (can use bottled lighter gases)
Temperature Test Range: 0~1000°C
Flame Temperature Requirements: from 100 °C ± 2 °C liters to 700 °C ± 3 °C time in 23.5 seconds ± 1 seconds
Standard Copper Block: 4mm±0.01mm, weight.0.58g±0.01g before drilling. Cu-ETP
Test process: automatic control, independent convulsions
Chamber: ≥0.5m3
Size: W1100mm×D700mm×H1300mm, exhaust hole Ø100mm
Control: Using single chip microcomputer + touch screen control
Consult standard : EN 60695−11−5, IEC60695−11−5,UL746A
Power Supply: 220V, 48-60Hz
Display panel language: Chinese + English (adjustable)
